RAM® Pin-Lock™ Marine Electronic Mount - D Size Medium
RAM® Pin-Lock™ Marine Electronic Mount - D Size Medium
RAM® Pin-Lock™ Marine Electronic Mount - D Size Medium
RAM® Pin-Lock™ Marine Electronic Mount - D Size Medium

RAM® Pin-Lock™ Marine Electronic Mount - D Size Medium

Part#:
RAM-S-D-111U
UPC:
793442945267
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$319.00
$361.64
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

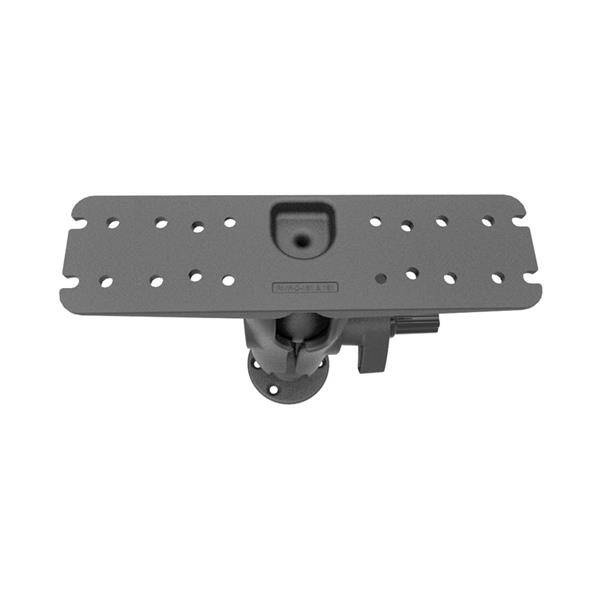

The RAM-S-D-111 consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock security nut and key knob. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. RAM Pin-Lock security solutions are designed to withstand the harshest environments where RAM Mounts are commonly used. With an emphasis on aesthetics and function, RAM security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.
Brand
RAM Mounts
Symbol
RAM-S-D-111U
Producer code
793442945267
Series
RAM Pin-Lock
Product Weight
2028 g
Hardware Included
(1) RAM Pin-Lock Security Key|(4) .312" x .187" Shoulder Washers
Product Dimensions
Overall Height: 11.5"
Socket-to-Socket Length
6.88"
Hole Pattern
See Drawings
3-Hole 120 Degree (Large)
Plate Size
Top Plate: 3" x 11"|Bottom Plate: 3.68" Diameter
Weight Capacity
Standard Use: 2721.55 gramss|Heavy-Duty Use: 2267.96 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
D Size 2.25" (Holds 2721.55 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Component parts
RAM-D-111BU
RAM-D-201-SU
RAM-D-202U
Socket To Socket Length
6.88"
Ball Size
D Size (2.25")
Garmin ECHOMAP Ultra 122sv
Garmin ECHOMAP Ultra 126sv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 1020xs
Garmin GPSMAP 1040xs
Garmin GPSMAP 1222/xsv Touch
Garmin GPSMAP 1242xsv/Touch
Garmin GPSMAP 740s
Garmin echoMAP 70DV
Humminbird 800 Series
Humminbird Fishfinders and GPS Chartplotters
Lowrance Elite-12 Ti
Lowrance Elite-12 Ti²
Lowrance Elite-9 CHIRP
Lowrance Elite-9 Ti
Lowrance Elite-9 Ti²
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 12
Lowrance HDS Carbon 9
Lowrance Hook²-12
Raymarine Axiom 7
Raymarine Axiom 9
Raymarine C120
Raymarine Fishfinders and GPS Chartplotters
