New in
Part#:UPC:
RAM-HOL-GE4PDU
793442016622
- Features:
- Form-fit power + data sync dock designed specifically for Getac ZX10 rugged tablet

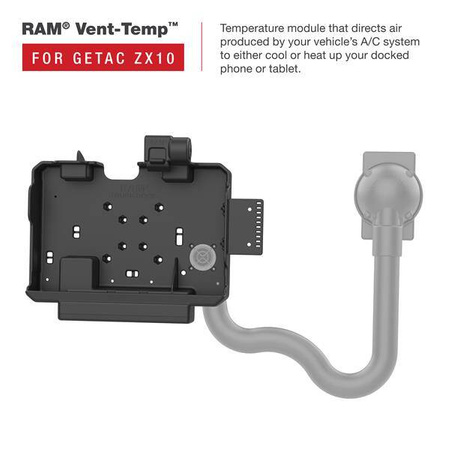

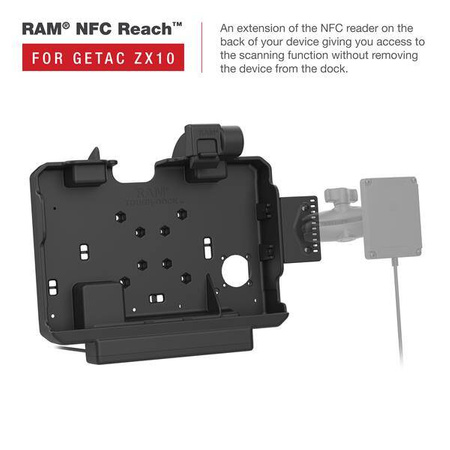

- Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
- Provides charging connectivity through integrated pogo pin technology and 5.5mm DC connector; provides single peripheral support via USB Type-A cable
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
- Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect a single input device via USB-A connector
Brand
Symbol
RAM-HOL-GE4PDU
Producer code
793442016622
Product Weight
975 g
Hardware Included
(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-32 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|()1 Cable Clamp|(2) Large Cable Ties|(8) Small Cable Ti
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
19VDC
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
(1) USB 2.0 Type A
Output Cable Length
240mm
Certifications
FCC, IC, CE, UKCA, WEEE, RoHS
Peripheral Output
500mAh
Getac ZX10
Ask a question
Write your opinion
- View details

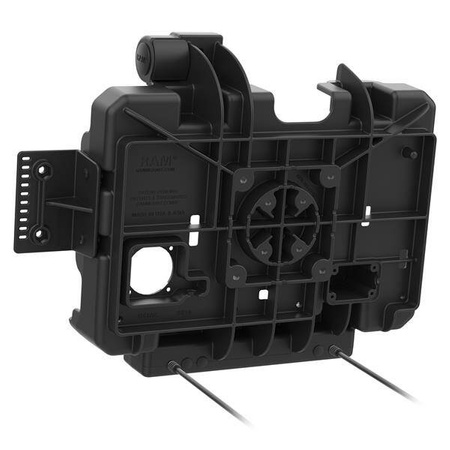

The RAM Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDU) allows you to secure the device and keep it charged through the pogo pin contacts while dockedpower is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM Temp-Right, Vent-Temp, RAM NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the Hard Carry Handle. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM 2-hole diamond bases for additional device mounting such as a phone or other handheld device. BrandSymbolRAM-HOL-GE4PDUProducer code793442016622Product Weight975 gHardware Included(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-32 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|()1 Cable Clamp|(2) Large Cable Ties|(8) Small Cable TiHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage19VDCInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput Connector(1) USB 2.0 Type AOutput Cable Length240mmCertificationsFCC, IC, CE, UKCA, WEEE, RoHSPeripheral Output500mAh - CompatibilityGetac ZX10
