RAM® Power + Dual USB Dock for Tab Active5 & 3 with Speaker Box
Part#:UPC:
RAM-HOL-SAM61PD2U
793442014376
- Features:
- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active3 and Tab Active2 provides charging and connects two additional USB peripherals through an integrated pogo pin connector

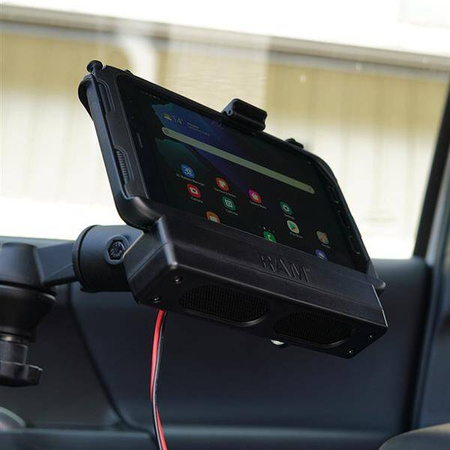

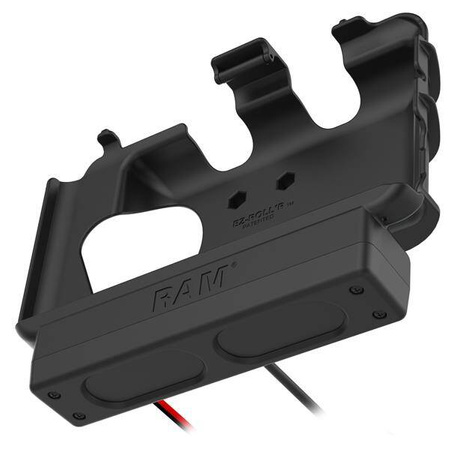

- Integrated dual speakers on the bottom of the dock for amplified audio
- Access to speakers, mics, NFC reader and headphone jack remain while device is docked

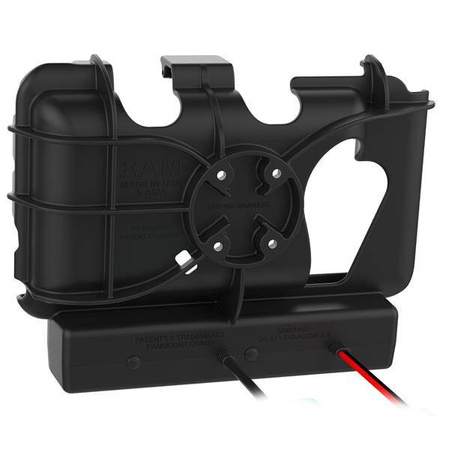

- Compatible with B and C size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects two additional USB peripherals through an integrated pogo pin connector
- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
- Compatible with RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Brand
Symbol
RAM-HOL-SAM61PD2U
Producer code
793442014376
Series
Product Weight
590 g
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Large Cable Ties|(6) Small Cable Ties
Speaker Specifications
Max volume level: 103dB @ 100mm
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
10-28V DC
10-28VDC
Input Connector
Power: Hardwire Charger with SAE Connector|Data: (2) USB Type A Female
Input Cable Length
1.9 Meters
Output Connector
(2) USB 1.1 Type A
Transfer Speed
12Mbps
Compliance
SAE J-1113, Integrated Short Circuit Protection
Certifications
FCC, CE, RoHS, WEEE, E-Mark
Device or Accessory Type
Tablet
Output Cable Length
260mm
.2 Meter
Regulatory
SAE J-1113, Integrated Short Circuit Protection
Peripheral Output
900mAh (per port)
Samsung Tab Active2
Samsung Tab Active3
Samsung Tab Active5
Ask a question
Write your opinion
- View details
This powered dock for the Samsung Tab Active5, Tab Active3 and 2 retains all the same capabilities as the other RAM EZ-Roll'r powered docks for the Tab Active5/3/2, with an added dual speaker integrated into the bottom of the dock for amplified audio while on the road. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's dual USB-A port to support up to two additional peripherals making this the ideal, compact mounting solution for your mobile workstation. Additional cavity in the back of the dock allows room for the GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. BrandSymbolRAM-HOL-SAM61PD2UProducer code793442014376SeriesProduct Weight590 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Large Cable Ties|(6) Small Cable TiesSpeaker SpecificationsMax volume level: 103dB @ 100mmHole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagInput Voltage10-28V DC10-28VDCInput ConnectorPower: Hardwire Charger with SAE Connector|Data: (2) USB Type A FemaleInput Cable Length1.9 MetersOutput Connector(2) USB 1.1 Type ATransfer Speed12MbpsComplianceSAE J-1113, Integrated Short Circuit ProtectionCertificationsFCC, CE, RoHS, WEEE, E-MarkDevice or Accessory TypeTabletOutput Cable Length260mm.2 MeterRegulatorySAE J-1113, Integrated Short Circuit ProtectionPeripheral Output900mAh (per port) - CompatibilitySamsung Tab Active2Samsung Tab Active3Samsung Tab Active5
