RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
New in

RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro

Part#:
RAM-138-S-SNM5PL-V7B1U
UPC:
793442026980
+ Add to compareAdd to shopping list
  • Features:
  • Bundle for Sonim XP Pro includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

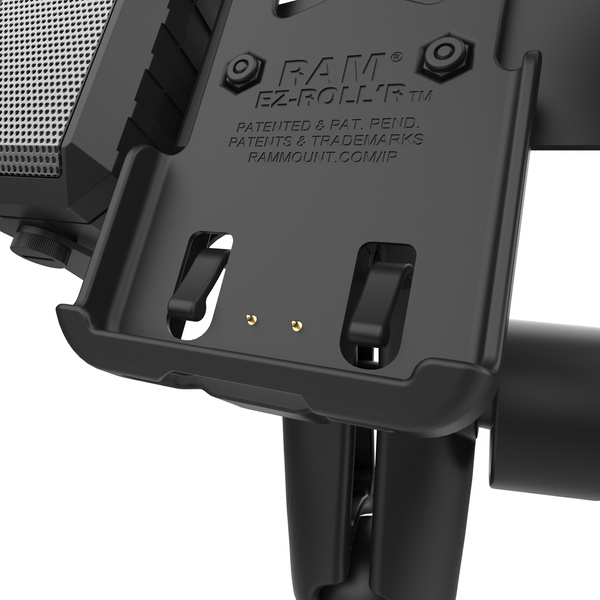

  • Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP Pro; provides charging through two integrated pogo pins and USB-A cable

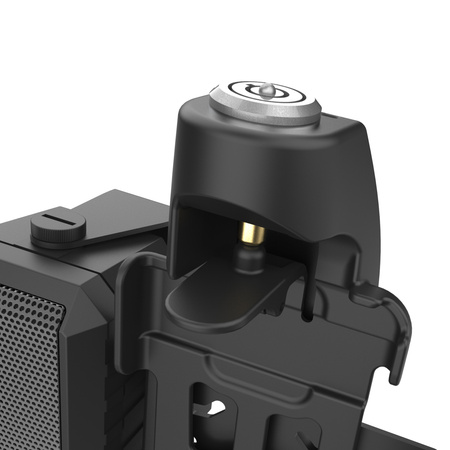

  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • Bundle for Sonim XP Pro & XP Pro Thermal includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
  • Bundle for Sonim XP Pro, Pro Thermal & Pro E includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
  • RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
$947.69
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

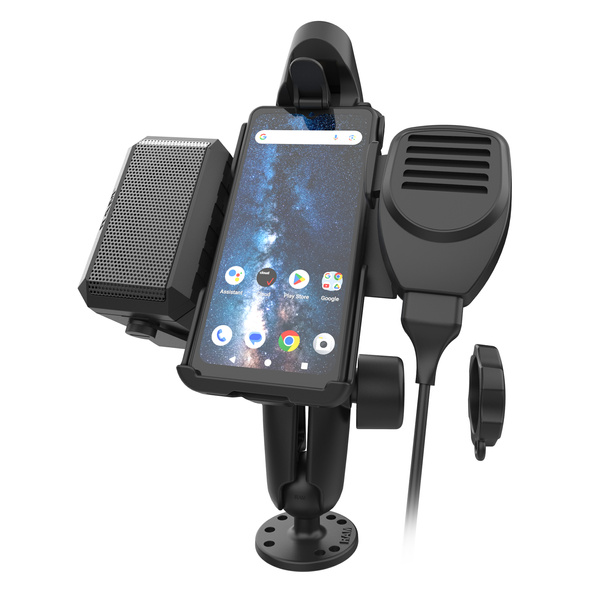

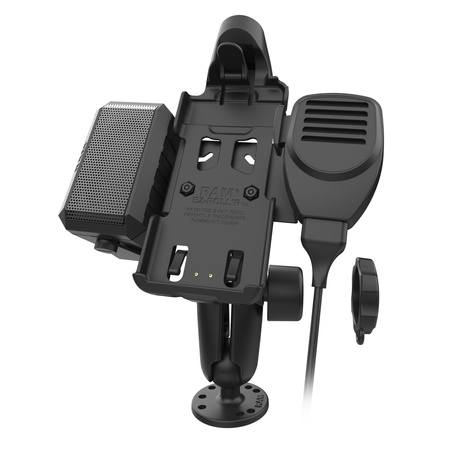

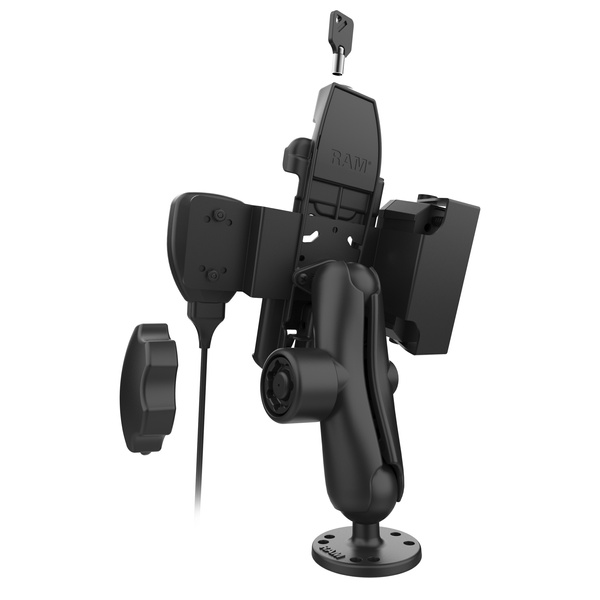

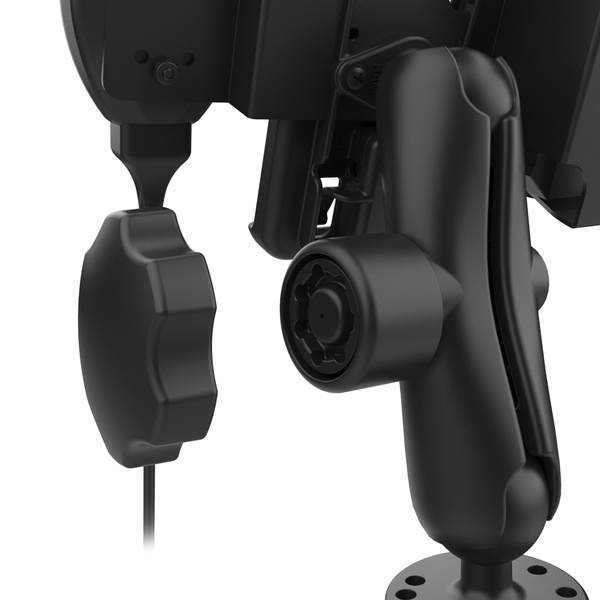

The RAM Double Ball Mount for Sonim XP Pro with Speaker & Hardwire Bundle (RAM-138-S-SNM5PL-V7B1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM EZ-Roll'r Powered Key Locking Dock for Sonim XP Pro, double ball mount with RAM Pin-Lock Security Knob, speaker, microphone, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included USB-C to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.
Brand
RAM Mounts
Symbol
RAM-138-S-SNM5PL-V7B1U
Producer code
793442026980
Series
EZ-Roll'r™
Hardware Included
Assembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) USB-C to 3.5 Audio Adapter Cable|(1) Modular Hardwire Charger
Assembly Hardware|(2) Keys for Holder|(1) Key for Locking Knob|(1) USB-C to 3.5 Audio Adapter Cable|(1) Modular Hardwire Charger|(1) Backing Plate & Hardware Assembly
Speaker Specifications
Independently adjustable volume knob|Max volume level: 100dB|8Ω / 10W rated speaker
Socket To Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Plate Size
2.5" Diameter
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite|Powder-Coated Steel
Marine-grade aluminum High strength composite Powder coated steel
Packaging Type
Poly Bag
Input Voltage
10-30VDC
Output Voltage
5-9VDC*
Output Current
2.5A max
Input Connector
Charger: Female USB Type A
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length
.2 Meters
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
Certifications
E-Mark Certification|RCM Certification|IEC/UL 62368-1
Component parts
RAM-101-MIC3U
RAM-138U
RAM-GDS-CHARGE-V7B1U
RAM-HOL-SNM5PLU
RAM-MIC-A01
RAM-SPEAK-A02
RAP-CAB-SNM5U
RAP-S-KNOB5U
RAM-103-238U
RAM-202-225-2U
RAM-GDS-CAB-SAE-SPLIT
RAM-SPEAK-A03
RAM-138-225B2U
Product Weight
3379 g
2200 g
New
Yes
Sonim XP Pro
Sonim XP Pro Thermal
Sonim XP Pro E
