Part#:UPC:
RAM-VPR-103-1
793442904837
- Features:

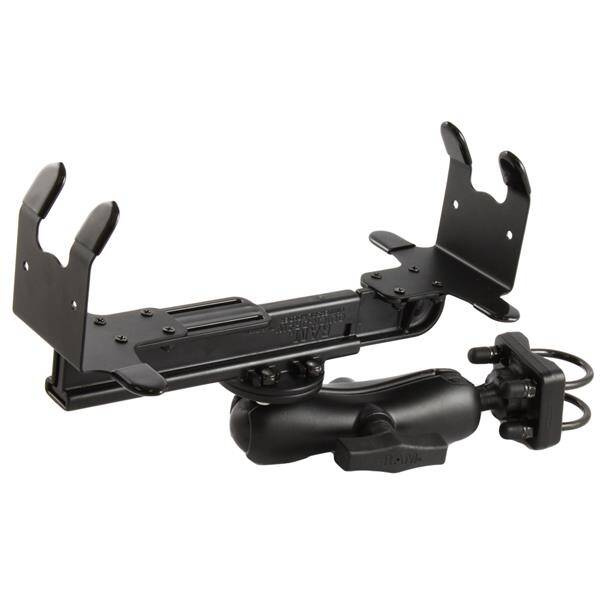

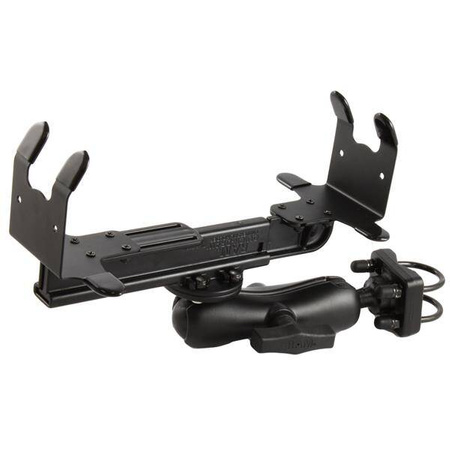

- Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your HP DeskJet or OfficeJet printer (check compatibility section)
- Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.88" in diameter
- Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-VPR-103-1
Producer code
793442904837
Series
Product Weight
1107 g
Hardware Included
Assembly Hardware|(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails|(4) 1/4"-20 Nylock Nuts|(4) Rubber Caps
Holder Dimensions
Max Height: 2.5"|Width Range: 9" - 15.5"
Clamp Range
1.25" - 1.5" diameter
Socket-to-Socket Length
4.66"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Powder coated Steel|Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Diameter Range
1.25" - 1.5"
Device or Accessory Type
Printer
Component parts
RAM-101U-235-1
RAM-VPR-103
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
HP DeskJet 450
HP DeskJet 460
HP DeskJet 470
HP OfficeJet 100
Ask a question
Write your opinion
- View details
The RAM-VPR-103-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM Tele-Pole and other poles with a diameter from 1.25" to 1.5". BrandSymbolRAM-VPR-103-1Producer code793442904837SeriesProduct Weight1107 gHardware IncludedAssembly Hardware|(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails|(4) 1/4"-20 Nylock Nuts|(4) Rubber CapsHolder DimensionsMax Height: 2.5"|Width Range: 9" - 15.5"Clamp Range1.25" - 1.5" diameterSocket-to-Socket Length4.66"Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsPowder coated Steel|Marine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeHandlebar/RailBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Socket Arm LengthMedium ArmDiameter Range1.25" - 1.5"Device or Accessory TypePrinterComponent partsRAM-101U-235-1RAM-VPR-103Socket To Socket Length4.66"Ball SizeC Size (1.5") - CompatibilityHP DeskJet 450HP DeskJet 460HP DeskJet 470HP OfficeJet 100
