Part#:UPC:
RAM-VPR-104-1
793442925863
Brand
Symbol
RAM-VPR-104-1
Producer code
793442925863
Series
Product Weight
1107 g
1111 g
Hardware Included
Assembly Hardware|(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails|(4) 1/4"-20 Nylock Nuts|(4) Rubber Caps
Holder Dimensions
Max Height: 1.75"|Width Range: 5.625" - 9.5"
Clamp Range
1.25" - 1.5" diameter
Socket-to-Socket Length
4.66"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Powder coated Steel|Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Diameter Range
1.25" - 1.5"
Device or Accessory Type
Printer
Component parts
RAM-101U-235-1
RAM-VPR-104
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Bixolon SPP-R400
Brother Mobile RuggedJet 3050
Datamax-O’Neil RL3E
Datamax-O’Neil RL4e
Fujitsu FP-100
Fujitsu FP-1000
Zebra QLn220
Zebra QLn320
Zebra QLn420
Zebra RW-420
Zebra ZQ510
Zebra ZQ511
Zebra ZQ520
Zebra ZQ521
Zebra ZQ610
Zebra ZQ620
Zebra ZQ630
Brother RuggedJet 2140
Brother RuggedJet 2150
Brother RuggedJet 3230BL
Brother RuggedJet 3230BLCP
Brother RuggedJet 3250WBL
Brother RuggedJet 3250WBLCP
Brother RuggedJet 3050
Ask a question
Write your opinion
- View details

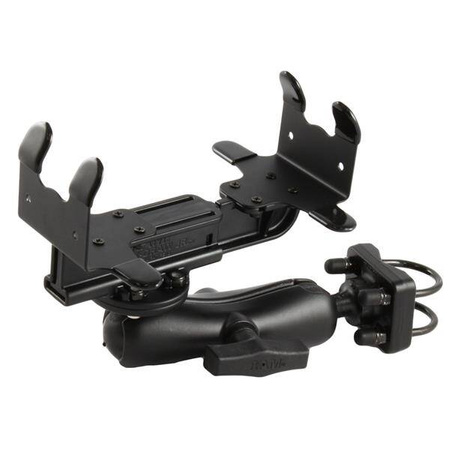

The RAM-VPR-104-1 consists of a double-u-bolt base, double socket arm and RAM Quick Draw Jr. printer holder. The RAM Quick Draw Jr. holder uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the cradles are side clamping plates that are designed to fit cleanly around the edges of a printer. BrandSymbolRAM-VPR-104-1Producer code793442925863SeriesProduct Weight1107 g1111 gHardware IncludedAssembly Hardware|(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails|(4) 1/4"-20 Nylock Nuts|(4) Rubber CapsHolder DimensionsMax Height: 1.75"|Width Range: 5.625" - 9.5"Clamp Range1.25" - 1.5" diameterSocket-to-Socket Length4.66"Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsPowder coated Steel|Marine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeHandlebar/RailBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Socket Arm LengthMedium ArmDiameter Range1.25" - 1.5"Device or Accessory TypePrinterComponent partsRAM-101U-235-1RAM-VPR-104Socket To Socket Length4.66"Ball SizeC Size (1.5") - CompatibilityBixolon SPP-R400Brother Mobile RuggedJet 3050Datamax-O’Neil RL3EDatamax-O’Neil RL4eFujitsu FP-100Fujitsu FP-1000Zebra QLn220Zebra QLn320Zebra QLn420Zebra RW-420Zebra ZQ510Zebra ZQ511Zebra ZQ520Zebra ZQ521Zebra ZQ610Zebra ZQ620Zebra ZQ630Brother RuggedJet 2140Brother RuggedJet 2150Brother RuggedJet 3230BLBrother RuggedJet 3230BLCPBrother RuggedJet 3250WBLBrother RuggedJet 3250WBLCPBrother RuggedJet 3050
