RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp
RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp
RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp
RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp
RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp
RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp

RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp

Part#:
RAM-101-247-4-ZE9U
UPC:
793442012846
+ Add to compareAdd to shopping list
  • Features:
  • Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra TC8000 and TC8300
  • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes 4" clamping base for posts and a medium length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
The product is available
Shipment on Tuesday 45 pcs in stock
List price$210.17
$246.28
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
Find out in which store you can check the product and buy it right away
RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp
RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp
uniwersalny
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

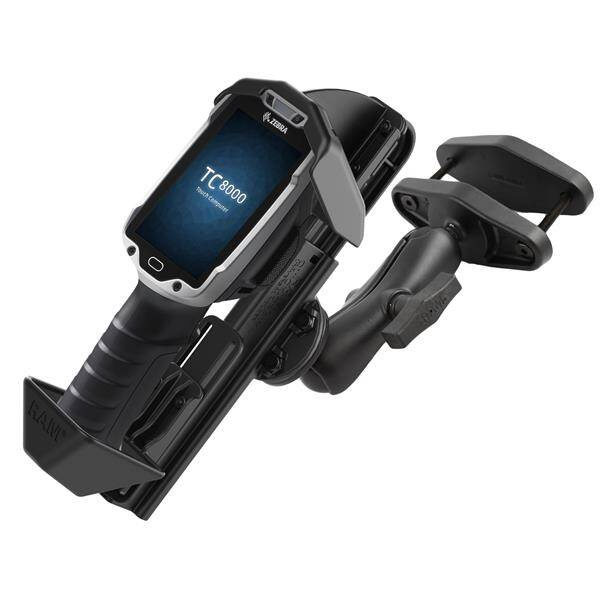

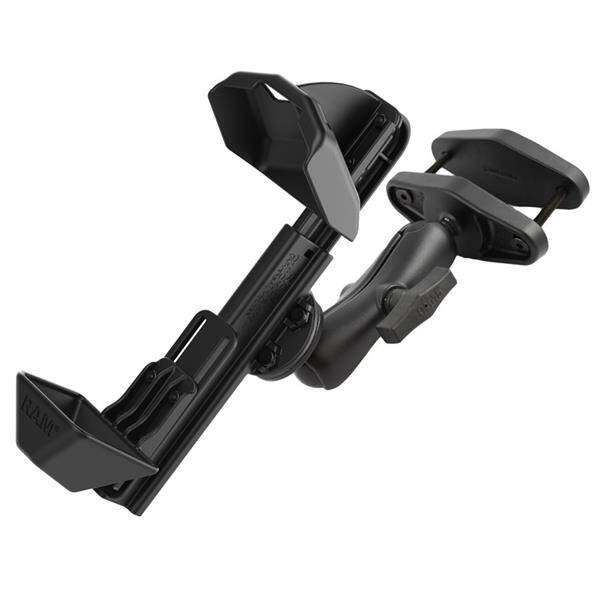

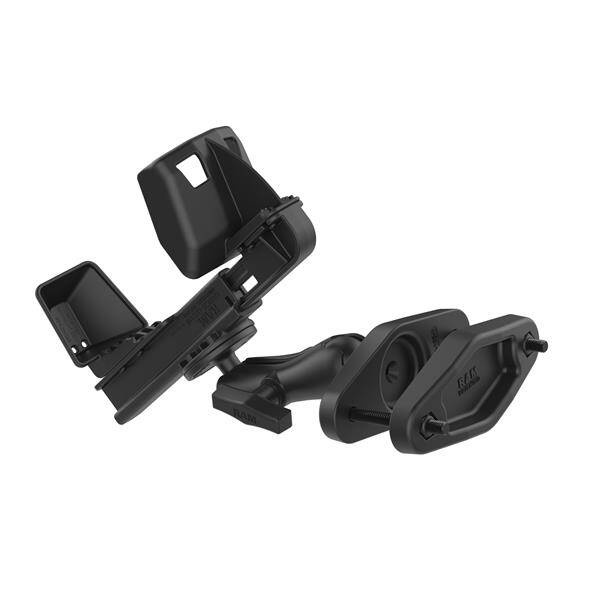

This RAM Quick-Draw is designed specifically for the Zebra TC8000 and TC8300 and consists of a double socket arm, round 2.5" diameter round base with the universal AMPS hole pattern and 4" clamp base. The clamp base will wrap around a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-101-247-4-ZE9U
Producer code
793442012846
Series
Quick-Draw
Product Weight
1247 g
1166 g
Hardware Included
Assembly Hardware|(2) 5/16"-18 x 3" Machine Screws|(2) 5/16"-18 Nylock Nuts
Clamp Range
4" max width
Socket-to-Socket Length
4.66"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Flat Edge Clamp
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Handheld Computer
Vehicle Type
Forklift
Lift Truck
Component parts
RAM-101U-247-4
RAM-HOL-ZE9U
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
