RAM® Strap Hole Clamp Mount for Garmin 695 & 696
RAM® Strap Hole Clamp Mount for Garmin 695 & 696
RAM® Strap Hole Clamp Mount for Garmin 695 & 696
RAM® Strap Hole Clamp Mount for Garmin 695 & 696

RAM® Strap Hole Clamp Mount for Garmin 695 & 696

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$135.40
$153.13
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

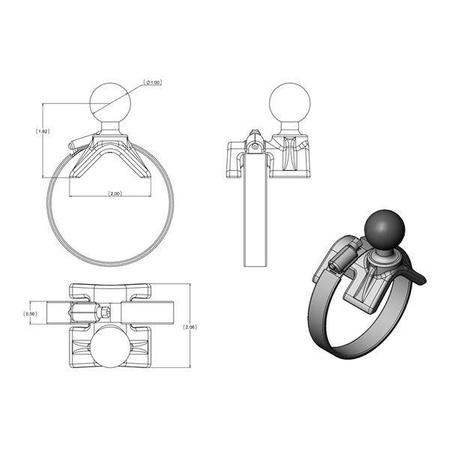

    The RAM-B-108-GA38U consists of a v-saddle strap base, double socket arm and custom high strength composite cradle for the Garmin GPSMAP 695 and 696. The v-saddle strap base accommodates rails from 1" to a maximum of 3" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for aircraft such as the Bonanza or Beech with a "throw over yoke".
    Symbol
    RAM-B-108-GA38U
    Producer code
    793442927669
    Series
    Product Weight
    277 g
    Hardware Included
    Assembly Hardware|(1) #20 Worm Drive Strap Clamp|(1) #28 Worm Drive Strap Clamp|(1) 6" Rubber Strip
    Clamp Range
    1" - 2.1" diameter
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    1" - 2.1"
    Device or Accessory Type
    GPS
    Vehicle Type
    Aircraft
    Component parts
    RAM-B-108U
    RAM-HOL-GA38U
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
