Part#:UPC:
RAM-HOL-TABL11U
793442939495
- Features:
- Locking mechanism for theft deterrence
- Support cups contain open slots to accomodate for tablets of various sizes
- Back plate can support various size support cups
- Spring loaded tension provides secure support and quick release for your tablet
- Backed by a lifetime warranty
Brand
Symbol
RAM-HOL-TABL11U
Producer code
793442939495
Series
Product Weight
522 g
553 g
Hardware Included
Assembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) Keys|(1) #4-40 x 3/8" Machine Screw|(1) #4-40 Nylock Nut
Holder Dimensions
Height Range: 6.8" - 10.55"|Width Range: 5.06" - 5.31"|Depth Range: .13" - .56"
Height Range: 6.8" - 10.55"|Width Range: 5.06" - 5.31"|Max Depth: .3"

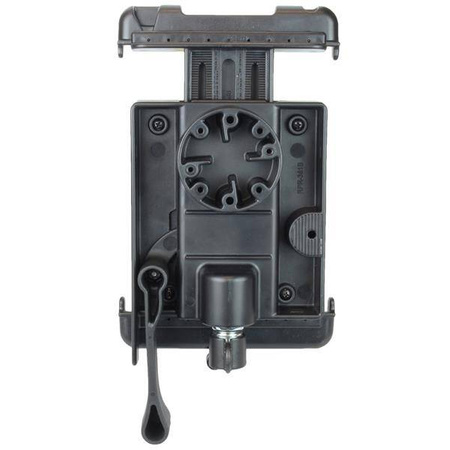

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Device or Accessory Type
Tablet
Component parts
RAM-HOL-TAB11-CUPSU
RAM-HOL-TABLBU
Apple iPad mini
Apple iPad mini 2
Apple iPad mini 3
Ask a question
Write your opinion
- View details

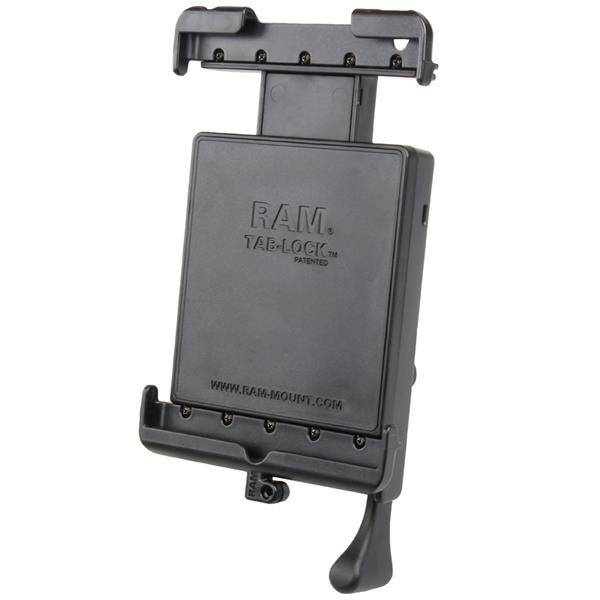

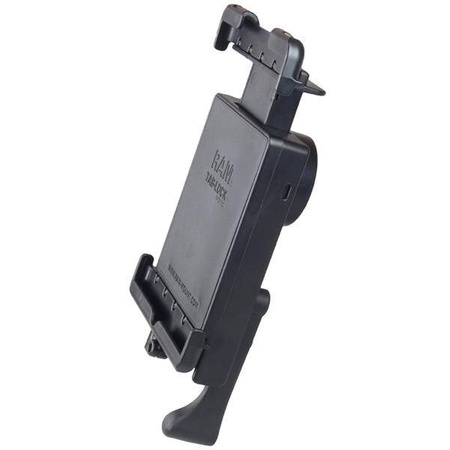

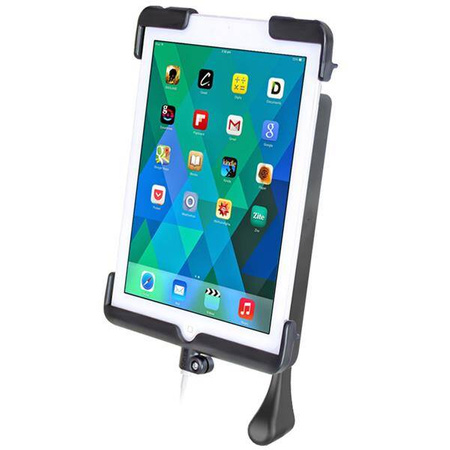

The RAM-HOL-TABL11U consists of a spring loaded backplate, custom support cups and locking mechanism for the iPad mini WITHOUT skin, sleeve or case. This spring loaded design makes it easy to load and unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. The TAB DOCK-N-LOCK cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. BrandSymbolRAM-HOL-TABL11UProducer code793442939495SeriesProduct Weight522 g553 gHardware IncludedAssembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) Keys|(1) #4-40 x 3/8" Machine Screw|(1) #4-40 Nylock NutHolder DimensionsHeight Range: 6.8" - 10.55"|Width Range: 5.06" - 5.31"|Depth Range: .13" - .56"Height Range: 6.8" - 10.55"|Width Range: 5.06" - 5.31"|Max Depth: .3"Hole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagDevice or Accessory TypeTabletComponent partsRAM-HOL-TAB11-CUPSURAM-HOL-TABLBU - CompatibilityApple iPad miniApple iPad mini 2Apple iPad mini 3
