Part#:UPC:
RAM-HOL-TABL30U
793442949951
- Features:

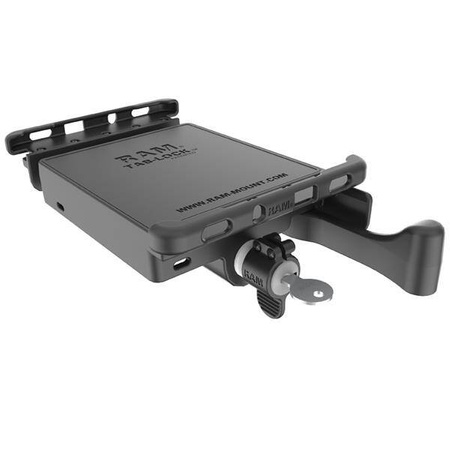

- Locking mechanism for theft deterrence
- Support cups contain open slots to accomodate for tablets of various sizes
- Back plate can support various size support cups
- Spring loaded tension provides secure support and quick release for your tablet
- Backed by a lifetime warranty
Brand
Symbol
RAM-HOL-TABL30U
Producer code
793442949951
Series
Product Weight
540 g
549 g
Hardware Included
Assembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) Keys
Holder Dimensions
Height Range: 7.82" - 10.375"|Width Range: 4.75" - 5.375"|Depth Range: .3125" max
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Device or Accessory Type
Tablet
Component parts
RAM-HOL-TAB30-CUPSU
RAM-HOL-TABLBU
ASUS ZenPad Z8s
Apple iPad mini 4 (lightning connector blocked)
Apple iPad mini 5 (lightning connector blocked)
Samsung Galaxy Tab S2 8.0
Ask a question
Write your opinion
- View details

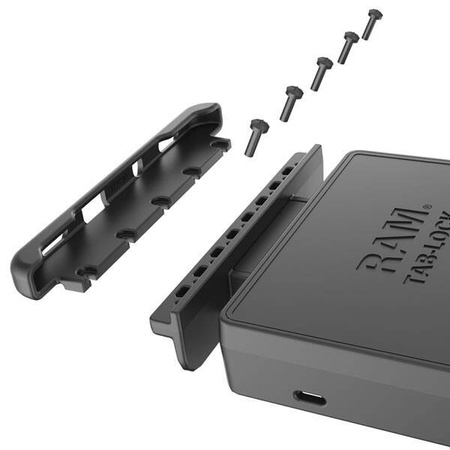

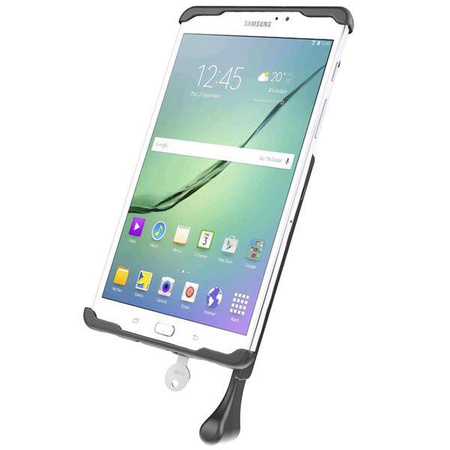

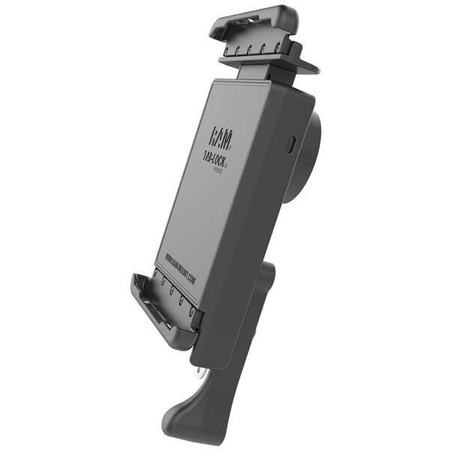

The RAM Tab-Lock spring loaded, quick release holder with a keyed lock offers a secure fit with easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab A 8.0, 8.0 with S Pen and Galaxy Tab S2 8.0. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. BrandSymbolRAM-HOL-TABL30UProducer code793442949951SeriesProduct Weight540 g549 gHardware IncludedAssembly Hardware|(2) #8 x 5/8" Sheet Metal Screws|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) KeysHolder DimensionsHeight Range: 7.82" - 10.375"|Width Range: 4.75" - 5.375"|Depth Range: .3125" maxHole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagDevice or Accessory TypeTabletComponent partsRAM-HOL-TAB30-CUPSURAM-HOL-TABLBU - CompatibilityASUS ZenPad Z8sApple iPad mini 4 (lightning connector blocked)Apple iPad mini 5 (lightning connector blocked)Samsung Galaxy Tab S2 8.0
