Part#:UPC:
RAM-HOL-TAB4U
793442932267
- Features:
- Spring-loaded holder secures small tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-HOL-TAB4U
Producer code
793442932267
Series
Product Weight
231 g
227 g
Hardware Included
Assembly Hardware|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 x 1/2" Machine Screws|(4) #8-32 Nylock Nuts
Holder Dimensions
Height Range: 7.375" - 10"|Width Range: 4" - 5.31"|Depth Range: .13" - 1.06"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Device or Accessory Type
Tablet
Component parts
RAM-HOL-ACU
RAM-HOL-TAB4-CUPSU
ASUS ZenPad C 7.0 with Case
Amazon Fire 7 with Case
Dell Venue 7 (2014) with Case
Dell Venue 7 3741 with Case
Dell Venue 7 with Case
Google Nexus 7 with Case
HP Slate 7 with Case
Huawei MediaPad T1 7.0 with Case
Huawei MediaPad T3 7 with Case
LG G Pad 7.0 with Case
LG G Pad X 8.0 with Case
Lenovo IdeaTab A1000 with Case
Lenovo IdeaTab A3000 with Case
Lenovo Tab 2 A7-10 with Case
Lenovo Tab 2 A7-20 with Case
Lenovo Tab 2 A7-30 with Case
Lenovo Tab 7 Essential with Case
Lenovo Tab A7-30 with Case
Lenovo Tab A7-40 with Case
Lenovo Tab A7-50 with Case
Lenovo Tab M8 HD with Case
Lenovo Tab3 7 with Case
Samsung Galaxy Tab 3 7.0 with Case
Samsung Galaxy Tab 3 Lite 7.0 with Case
Samsung Galaxy Tab A 7.0 with Case
Samsung Galaxy Tab E 7.0 with Case
Zebra ET1 Enterprise Tablet
Ask a question
Write your opinion
- View details

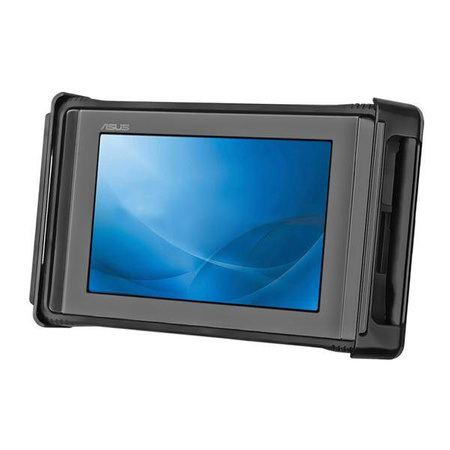

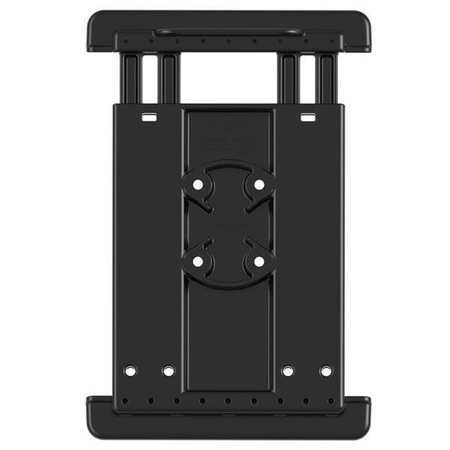

Get the most out of your tablet with the RAM Tab-Tite spring loaded, quick release cradle. With interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your tablet. The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Cradle Dimensions: Height: 7.375" to 10" Width: 4" to 5.31" Depth: 0.13" to 1.06" Note: Product consists of holder only. Case not included. BrandSymbolRAM-HOL-TAB4UProducer code793442932267SeriesProduct Weight231 g227 gHardware IncludedAssembly Hardware|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 x 1/2" Machine Screws|(4) #8-32 Nylock NutsHolder DimensionsHeight Range: 7.375" - 10"|Width Range: 4" - 5.31"|Depth Range: .13" - 1.06"Hole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagDevice or Accessory TypeTabletComponent partsRAM-HOL-ACURAM-HOL-TAB4-CUPSU - CompatibilityASUS ZenPad C 7.0 with CaseAmazon Fire 7 with CaseDell Venue 7 (2014) with CaseDell Venue 7 3741 with CaseDell Venue 7 with CaseGoogle Nexus 7 with CaseHP Slate 7 with CaseHuawei MediaPad T1 7.0 with CaseHuawei MediaPad T3 7 with CaseLG G Pad 7.0 with CaseLG G Pad X 8.0 with CaseLenovo IdeaTab A1000 with CaseLenovo IdeaTab A3000 with CaseLenovo Tab 2 A7-10 with CaseLenovo Tab 2 A7-20 with CaseLenovo Tab 2 A7-30 with CaseLenovo Tab 7 Essential with CaseLenovo Tab A7-30 with CaseLenovo Tab A7-40 with CaseLenovo Tab A7-50 with CaseLenovo Tab M8 HD with CaseLenovo Tab3 7 with CaseSamsung Galaxy Tab 3 7.0 with CaseSamsung Galaxy Tab 3 Lite 7.0 with CaseSamsung Galaxy Tab A 7.0 with CaseSamsung Galaxy Tab E 7.0 with CaseZebra ET1 Enterprise Tablet
