Part#:UPC:
RAM-HOL-TAB12U
793442939761
- Features:
- Spring-loaded holder secures iPad mini 1, 2, 3, and 4 with light-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-HOL-TAB12U
Producer code
793442939761
Series
Product Weight
227 g
231 g
Hardware Included
Assembly Hardware|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 x 1/2" Machine Screws|(4) #8-32 Nylock Nuts
Holder Dimensions
Height Range: 7.125" - 9.5"|Width Range: 5.06" - 5.68"|Depth Range: .13" - 1"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Device or Accessory Type
Tablet
Component parts
RAM-HOL-ACU
RAM-HOL-TAB12-CUPSU
ASUS MeMO Pad 8 with Case
ASUS VivoTab 8 with Case
Amazon Fire 7 Kids
Amazon Fire HD 8 Kids
Amazon Fire HD 8 with Case
Apple iPad mini 6 with Case
Dell Venue 8 (2014) with Case
Dell Venue 8 7840 with Case
Dell Venue 8 Pro with Case
Dell Venue 8 with Case
Huawei MediaPad M3 Lite with Case
Huawei MediaPad M3 with Case
Huawei MediaPad T1 8.0 with Case
Huawei MediaPad T3 8 with Case
LG G Pad F 8.0 (2nd Gen) with Case
LG G Pad F2 8.0 with Case
LG G Pad II 8.0 with Case
LG G Pad X II 8.0 with Case
Lenovo IdeaTab A2107 with Case
Lenovo Ideapad Miix 300 with Case
Lenovo Tab 2 A8 with Case
Lenovo Tab 4 8 Plus with Case
Lenovo Tab 4 8 with Case
Lenovo Tab A8-50 with Case
Lenovo Tab S8 with Case
Lenovo Tab3 8 with Case
Nvidia Shield Tablet with Case
Panasonic Toughpad FZ-M1
Samsung Galaxy Tab 2 7.0 with Case
Samsung Galaxy Tab 3 8.0 with Case
Samsung Galaxy Tab A 8.4 with Case
Samsung Galaxy Tab E 8.0 with Case
Samsung Galaxy Tab Pro 8.4 with Case
Samsung Galaxy Tab A7 Lite 8.7 with Case
Social Mobile Rhino T80
Apple iPad mini (A17 Pro) with Case
Ask a question
Write your opinion
- View details

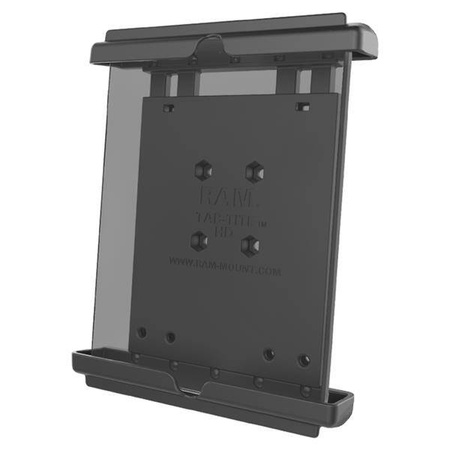

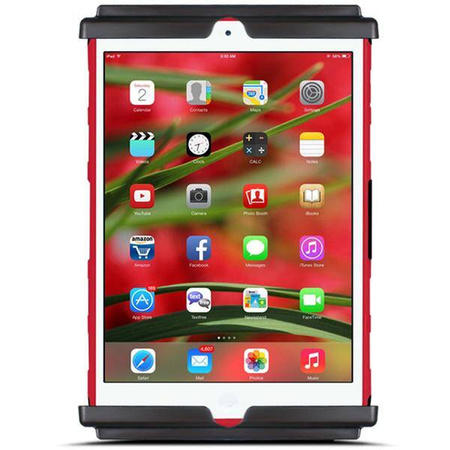

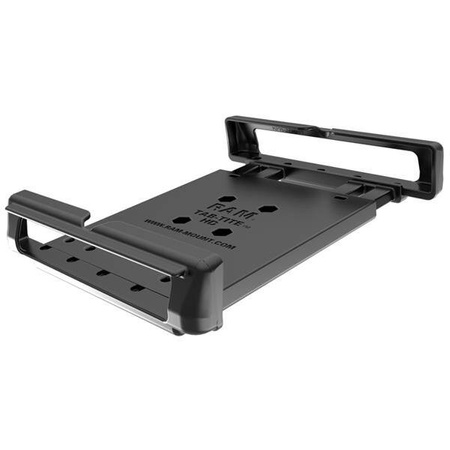

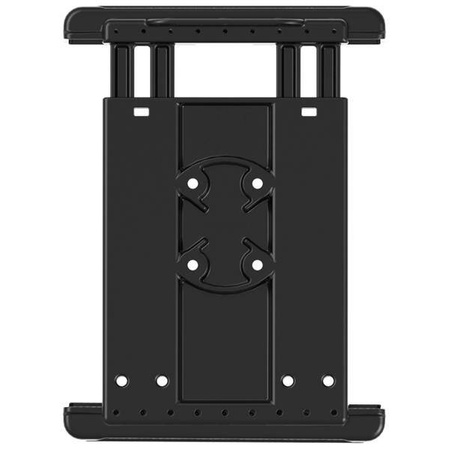

The RAM Tab-Tite spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device. The RAM Tab-Tite holder is compatible with any tablet within the listed dimensions. BrandSymbolRAM-HOL-TAB12UProducer code793442939761SeriesProduct Weight227 g231 gHardware IncludedAssembly Hardware|(4) #8-32 x 5/8" Machine Screws|(4) #8-32 x 1/2" Machine Screws|(4) #8-32 Nylock NutsHolder DimensionsHeight Range: 7.125" - 9.5"|Width Range: 5.06" - 5.68"|Depth Range: .13" - 1"Hole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagDevice or Accessory TypeTabletComponent partsRAM-HOL-ACURAM-HOL-TAB12-CUPSU - CompatibilityASUS MeMO Pad 8 with CaseASUS VivoTab 8 with CaseAmazon Fire 7 KidsAmazon Fire HD 8 KidsAmazon Fire HD 8 with CaseApple iPad mini 6 with CaseDell Venue 8 (2014) with CaseDell Venue 8 7840 with CaseDell Venue 8 Pro with CaseDell Venue 8 with CaseHuawei MediaPad M3 Lite with CaseHuawei MediaPad M3 with CaseHuawei MediaPad T1 8.0 with CaseHuawei MediaPad T3 8 with CaseLG G Pad F 8.0 (2nd Gen) with CaseLG G Pad F2 8.0 with CaseLG G Pad II 8.0 with CaseLG G Pad X II 8.0 with CaseLenovo IdeaTab A2107 with CaseLenovo Ideapad Miix 300 with CaseLenovo Tab 2 A8 with CaseLenovo Tab 4 8 Plus with CaseLenovo Tab 4 8 with CaseLenovo Tab A8-50 with CaseLenovo Tab S8 with CaseLenovo Tab3 8 with CaseNvidia Shield Tablet with CasePanasonic Toughpad FZ-M1Samsung Galaxy Tab 2 7.0 with CaseSamsung Galaxy Tab 3 8.0 with CaseSamsung Galaxy Tab A 8.4 with CaseSamsung Galaxy Tab E 8.0 with CaseSamsung Galaxy Tab Pro 8.4 with CaseSamsung Galaxy Tab A7 Lite 8.7 with CaseSocial Mobile Rhino T80Apple iPad mini (A17 Pro) with Case
