Part#:UPC:
RAM-B-408-112-15U
793442950131
- Features:
- Handlebar mounting base with B size 1" rubber ball accommodates rails 1 1/8" to 1 1/2" in diameter
- Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-B-408-112-15U
Producer code
793442950131
Series
Product Weight
145 g
Hardware Included

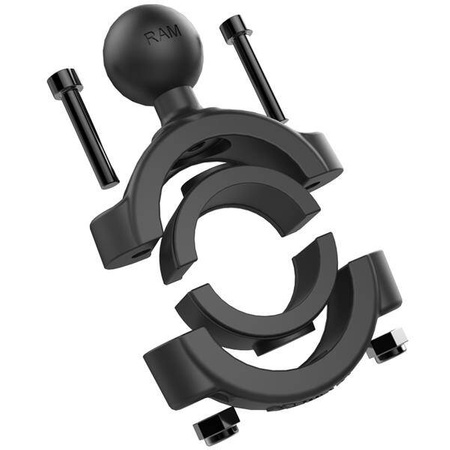

(2) #10-24 x 1" Socket Head Cap Screws|(2) #10-24 Nylock Nuts|(2) 1.12" Split Reducing Bushings|(2) 1.27" Split Reducing Bushings|(1) 5/32" Hex Key Wrench|(1) 127mm x 17mm Rubber Adhesive Strip

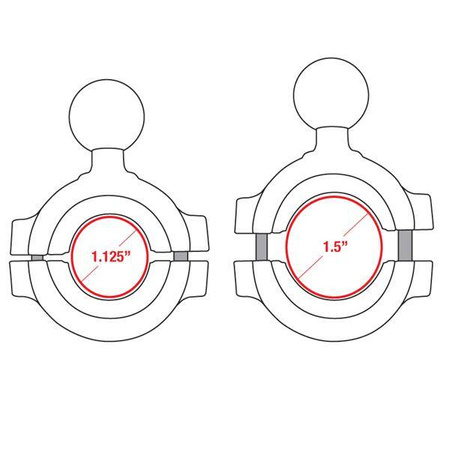

Clamp Range
1.125" - 1.5" diameter
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Diameter Range
1.125" - 1.5"
Vehicle Type
Motorcycle
ATV
UTV
Dirt Bike
Power Boat
Ball Size
B Size (1")
Component parts
RAM-HAR-408-112-15U
Ask a question
Write your opinion
- View details

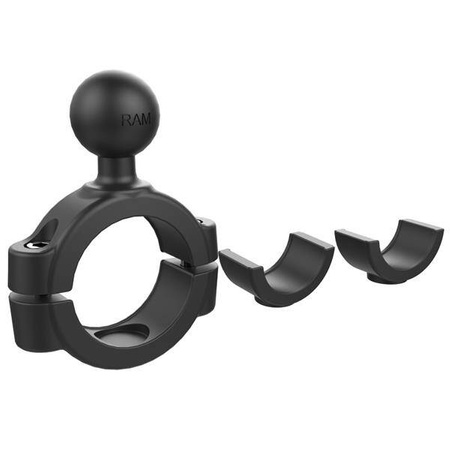

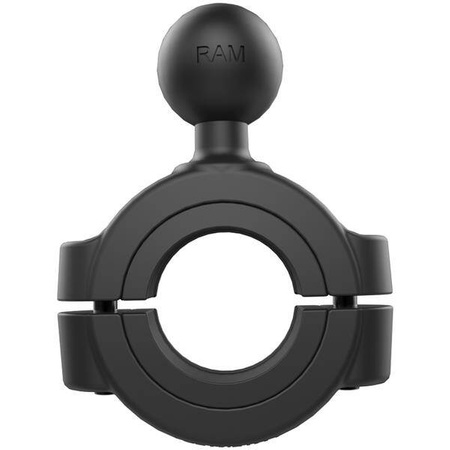

The large version of the RAM Torque handlebar mounting base features a 1" B size RAM rubber ball and is compatible with rails 1 1/8 to 1 1/2" in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The large RAM Torque mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. BrandSymbolRAM-B-408-112-15UProducer code793442950131SeriesProduct Weight145 gHardware Included(2) #10-24 x 1" Socket Head Cap Screws|(2) #10-24 Nylock Nuts|(2) 1.12" Split Reducing Bushings|(2) 1.27" Split Reducing Bushings|(1) 5/32" Hex Key Wrench|(1) 127mm x 17mm Rubber Adhesive StripClamp Range1.125" - 1.5" diameterWeight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeHandlebar/RailBall & Socket SizeB Size 1" (Holds 907.18 gramss)Diameter Range1.125" - 1.5"Vehicle TypeMotorcycleATVUTVDirt BikePower BoatBall SizeB Size (1")Component partsRAM-HAR-408-112-15U - Recommended products
