Part#:UPC:
RAP-404-202U
793442944802
- Features:

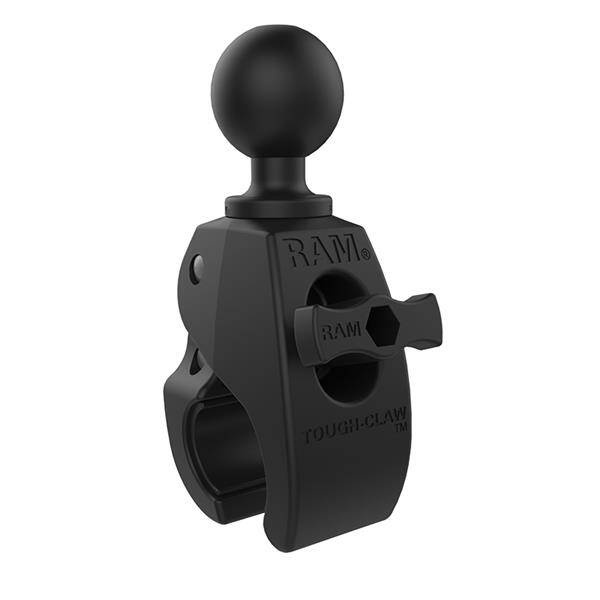

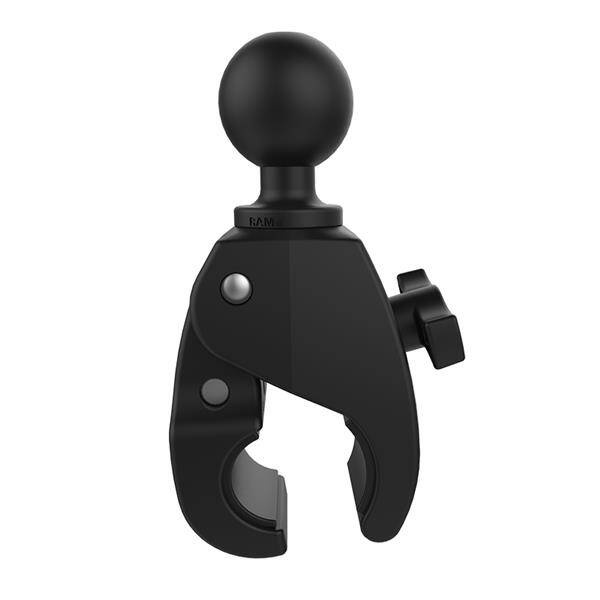

- Medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.875" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- 2.5" round plate connects to RAM® C size device holders containing the universal AMPS hole pattern
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
- Medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Brand
Symbol
RAP-404-202U
Producer code
793442944802
Series
Product Weight
726 g
Clamp Range
1" - 1.6" diameter
Socket-to-Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Flat Edge Clamp
Handlebar/Rail
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Vehicle Type
ATV
UTV
Power Boat
Component parts
RAM-201U
RAM-202U
RAP-404U
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

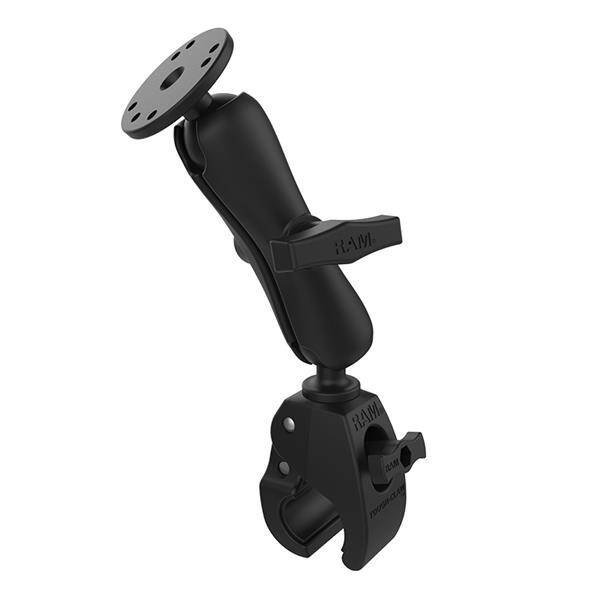

The RAP-404-202U consists of the medium version of the RAM Tough-Claw with a C size 1.5" rubber ball, medium length double socket arm, and a round plate with C size 1.5" rubber ball. The RAM Tough-Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The medium version of the RAM Tough-Claw can quickly be clamped on rails ranging from 1" to 1.6" in outer diameter and is ideal for mounting phones, tablets, action cameras, rod holders, and much more in a wide variety of applications. BrandSymbolRAP-404-202UProducer code793442944802SeriesProduct Weight726 gClamp Range1" - 1.6" diameterSocket-to-Socket Length4.66"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterWeight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeFlat Edge ClampHandlebar/RailBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Socket Arm LengthMedium ArmVehicle TypeATVUTVPower BoatComponent partsRAM-201URAM-202URAP-404USocket To Socket Length4.66"Ball SizeC Size (1.5") - Recommended products
