RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base
RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base
RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base
RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base
RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base
RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base

RAM® Tough-Tray™ Double Ball Mount with Double U-Bolt Rail Base

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$262.51
$303.02
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

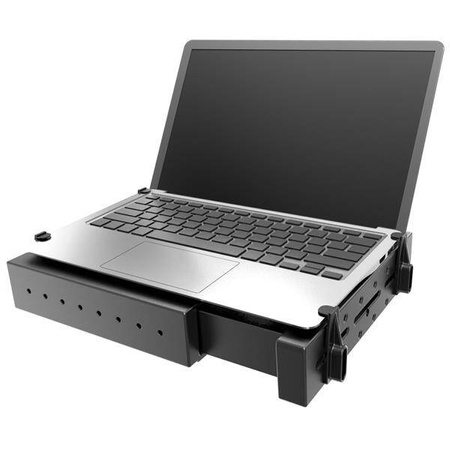

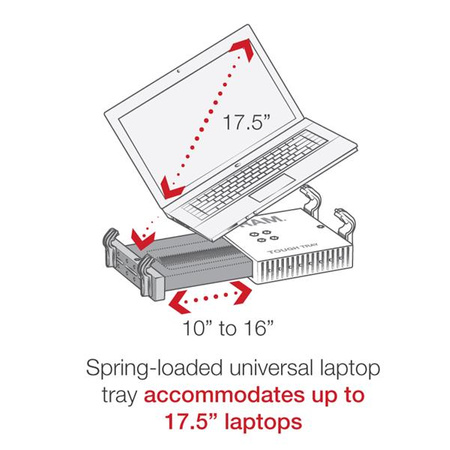

    The RAM-101-DAN1U consists of the RAM Tough-Tray with flat retaining arms, STANDARD length double socket arm and 1.5" diameter ball double u-bolt base. The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four FLAT (4) side clamping arm; they allowing for your laptop to close completely while in the tray. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.
    Symbol
    RAM-101-DAN1U
    Producer code
    793442925399
    Product Weight
    1882 g
    1873 g
    Hardware Included
    Assembly Hardware|(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails|(4) 1/4"-20 Nylock Nuts|(4) Rubber Caps
    Tray Dimensions
    Width Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"
    Clamp Range
    1" - 1.25" diameter
    Socket-to-Socket Length
    4.66"
    Weight Capacity
    Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    C Size 1.5" (Holds 1814.37 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    1" - 1.25"
    Device or Accessory Type
    Laptop
    Component parts
    RAM-201U
    RAM-202U
    RAM-234-3
    RAM-235U
    Socket To Socket Length
    4.66"
    Ball Size
    C Size (1.5")
