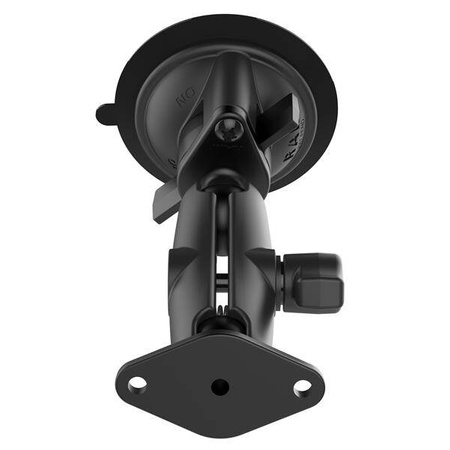

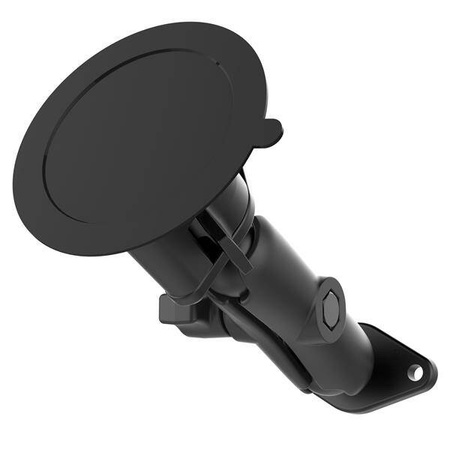

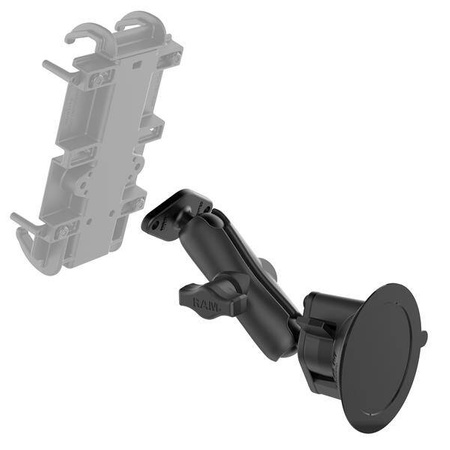

RAM® Twist-Lock™ Suction Cup Double Ball Mount - Medium
Part#:UPC:
RAM-B-166U
793442901041
- Features:

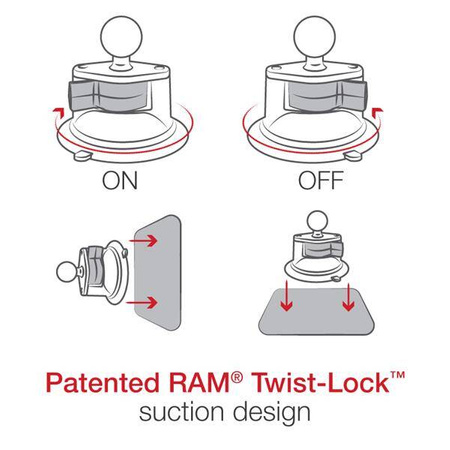

- RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
- Includes B size medium length RAM® double socket arm and diamond bases with B size 1" rubber balls; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
- Backed by a lifetime warranty*
Brand
Symbol
RAM-B-166U
Producer code
793442901041
Series
Product Weight
281 g
290 g
Hardware Included
Assembly Hardware
Product Dimensions
Overall Height: 6.69"
Suction Size
3.3" Diameter
Socket-to-Socket Length
3"
Hole Pattern
2-Hole AMPS: 1.912"
AMPS 2-Hole
Plate Size
2.43" x 1.31"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Suction Cup
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Vehicle Type
Car & Truck
Component parts
RAM-B-201U
RAM-B-224-1U
RAM-B-238U
Socket To Socket Length
3"
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

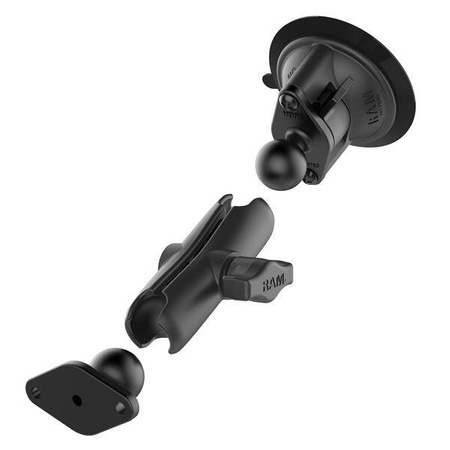

The RAM-B-166U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. BrandSymbolRAM-B-166UProducer code793442901041SeriesProduct Weight281 g290 gHardware IncludedAssembly HardwareProduct DimensionsOverall Height: 6.69"Suction Size3.3" DiameterSocket-to-Socket Length3"Hole Pattern2-Hole AMPS: 1.912"AMPS 2-HolePlate Size2.43" x 1.31"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeSuction CupBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmVehicle TypeCar & TruckComponent partsRAM-B-201URAM-B-224-1URAM-B-238USocket To Socket Length3"Ball SizeB Size (1") - Recommended products
