RAM® Twist-Lock™ Suction Cup Mount with 1/4"-20 Threaded Stud - Medium
Part#:UPC:
RAM-B-166-237U
793442916205
Brand
Symbol
RAM-B-166-237U
Producer code
793442916205
Series
Product Weight
268 g
Hardware Included
Assembly Hardware
Suction Size
3.3" Diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Suction Cup
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Thread Pitch
1/4''-20
Socket Arm Length
Medium Arm
Device or Accessory Type
Camera
Component parts
RAM-B-201U
RAM-B-224-1U
RAM-B-237U
Socket To Socket Length
3"
Ball Size
B Size (1")
Cameras that contain 1/4"-20 Female Threaded Hole
Ask a question
Write your opinion
- View details

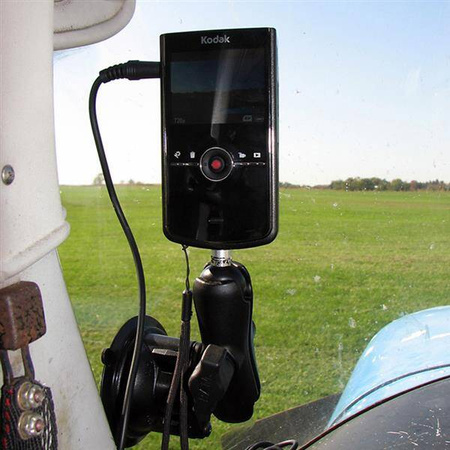

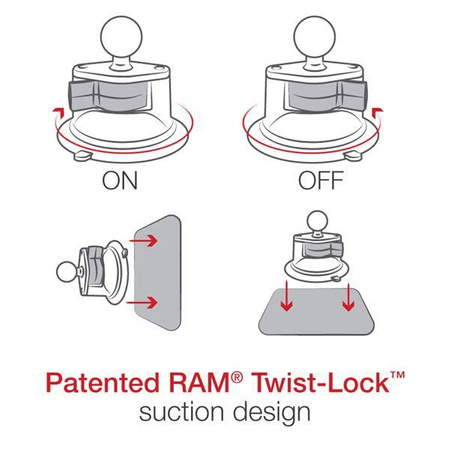

The RAM-B-166-237U consists of a 3.3" suction cup locking base, double socket arm and 1" rubber ball that contains a 1/4"-20 camera male thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. The mount contains adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including adhesive disks. BrandSymbolRAM-B-166-237UProducer code793442916205SeriesProduct Weight268 gHardware IncludedAssembly HardwareSuction Size3.3" DiameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeSuction CupBall & Socket SizeB Size 1" (Holds 907.18 gramss)Thread Pitch1/4''-20Socket Arm LengthMedium ArmDevice or Accessory TypeCameraComponent partsRAM-B-201URAM-B-224-1URAM-B-237USocket To Socket Length3"Ball SizeB Size (1") - CompatibilityCameras that contain 1/4"-20 Female Threaded Hole
