RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud
RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud
RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud

RAM® Twist-Lock™ Suction Cup Mount with Round Plate & 1/4"-20 Stud

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$87.22
$101.13
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

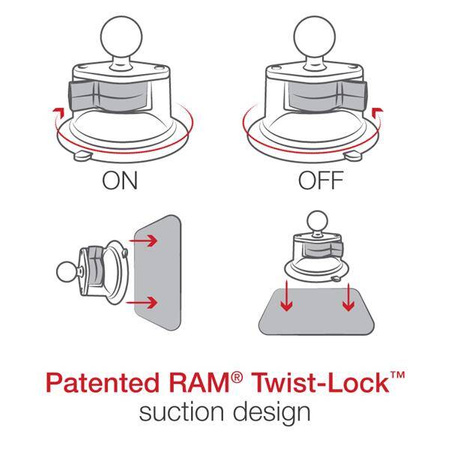

The RAM-B-166-202AU consists of a 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
Symbol
RAM-B-166-202AU
Producer code
793442921162
Warranty
Product Weight
308 g
Hardware Included
Assembly Hardware
Product Dimensions
Overall Height: 6.69"
Suction Size
3.3" Diameter
Socket-to-Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Thread Pitch
1/4"-20 x .25"
1/4''-20
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Suction Cup
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Camera
Component parts
RAM-B-201U
RAM-B-202AU
RAM-B-224-1U
Compatibility
Cameras that contain 1/4"-20 Female Threaded Hole
Socket To Socket Length
3"
Ball Size
B Size (1")
