RAM® Universal Double Ball Mount with Round Plate and 1/2" NPT Thread
RAM® Universal Double Ball Mount with Round Plate and 1/2" NPT Thread
RAM® Universal Double Ball Mount with Round Plate and 1/2" NPT Thread
RAM® Universal Double Ball Mount with Round Plate and 1/2" NPT Thread

RAM® Universal Double Ball Mount with Round Plate and 1/2" NPT Thread

  • Features:
  • Double ball mount for attaching to threaded pipes; includes a round plate base featuring the AMPS hole pattern for attachment to compatible device holders and base with 1/2" NPT hole for pipe or pedestal
  • Includes one round ball base, one base with 1/2" NPT hole, and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$103.00
$118.62
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

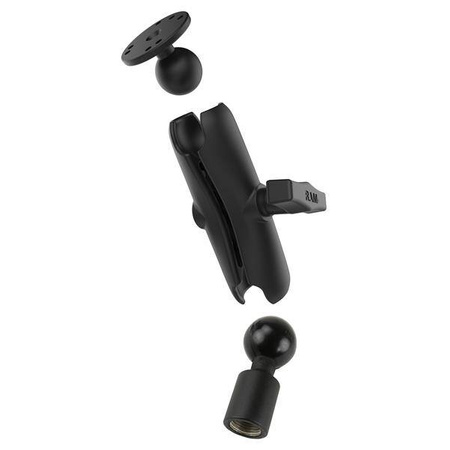

The RAM-101-218-1U consists of a double socket arm mount with one round base and one base with 1/2" NPT hole for pipe or pedestal. The mount is approximately 7.50" tall at maximum extension and is collapsible. This measurement does not include length of pedestal used.
Symbol
RAM-101-218-1U
Producer code
793442101106
Warranty
Product Weight
327 g
Product Dimensions
Overall Height: 7.5"
Socket-to-Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Thread Pitch
1/2'' NPT
Socket Arm Length
Medium Arm
Component parts
RAM-201U
RAM-202U
RAM-218-1U
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
