RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium

RAM® Universal Marine Electronic Mount - B Size Medium

Part#:
RAM-B-111U
UPC:
793442001987
+ Add to compareAdd to shopping list
  • Features:
  • Complete flat surface, drill-down mounting solution with an overall height of 5"

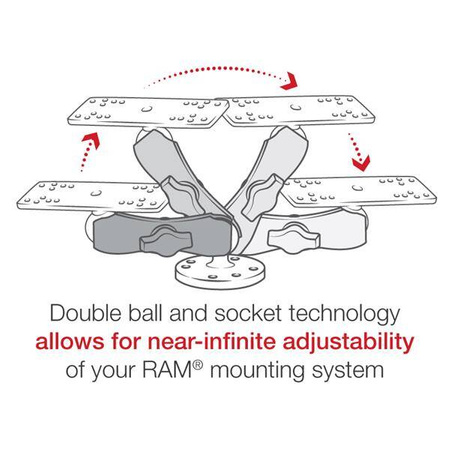

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$73.09
$82.23
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
Find out in which store you can check the product and buy it right away
RAM® Universal Marine Electronic Mount - B Size Medium
RAM® Universal Marine Electronic Mount - B Size Medium
uniwersalny
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

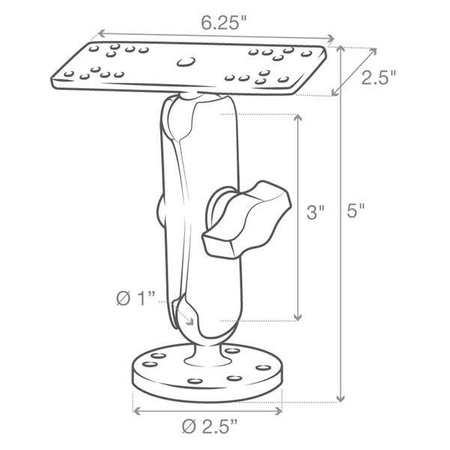

The RAM-B-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.
Brand
RAM Mounts
Symbol
RAM-B-111U
Producer code
793442001987
Product Weight
322 g
Product Dimensions
Overall Height: 5"
Socket-to-Socket Length
3"
Hole Pattern

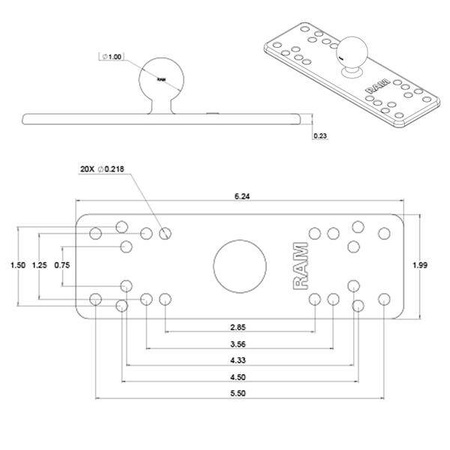

4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|See Drawing
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
Top Plate: 6.25" x 2.5"|Bottom Plate: 2.5" Diameter
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
5/8" - 3"
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-B-111BU
RAM-B-201U
RAM-B-202U
Socket To Socket Length
3"
Ball Size
B Size (1")
Garmin GPSMAP 162
Garmin GPSMAP 168
Garmin GPSMAP 175
Garmin GPSMAP 180
Garmin GPSMAP 180C
Garmin GPSMAP 182
Garmin GPSMAP 185
Garmin GPSMAP 188
Garmin GPSMAP 232
Garmin GPSMAP 238
Garmin Striker 5 Series
Garmin Striker Plus 5cv
Garmin Striker Vivid 5cv
