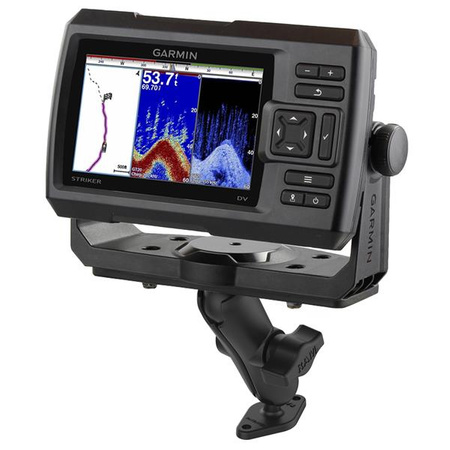

RAM® Universal Marine Electronic Mount with Diamond Base
RAM® Universal Marine Electronic Mount with Diamond Base
RAM® Universal Marine Electronic Mount with Diamond Base
RAM® Universal Marine Electronic Mount with Diamond Base
RAM® Universal Marine Electronic Mount with Diamond Base
RAM® Universal Marine Electronic Mount with Diamond Base

RAM® Universal Marine Electronic Mount with Diamond Base

Part#:
RAM-B-111-238U
UPC:
793442000904
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$70.60
$80.33
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
The RAM-B-111-238U consists of a double socket arm, 2.43" x 1.31" diamond base and 6.25" x 2" rectangle base. The diamond base contains two holes 1.912" from center to center, positioned at both ends of the base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Brand
RAM Mounts
Symbol
RAM-B-111-238U
Producer code
793442000904
Product Weight
304 g
Product Dimensions
Overall Height: 5"
Socket-to-Socket Length
3"
Hole Pattern
2-Hole AMPS: 1.912"|See Drawing
AMPS 2-Hole
AMPS 4-Hole
Plate Size
Top Plate: 6.25" x 2.5"|Bottom Plate: 2.43" x 1.31"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
1" - 2.1"
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-B-111BU
RAM-B-201U
RAM-B-238U
Socket To Socket Length
3"
Ball Size
B Size (1")
Garmin GPSMAP 162
Garmin GPSMAP 168
Garmin GPSMAP 175
Garmin GPSMAP 180
Garmin GPSMAP 180C
Garmin GPSMAP 182
Garmin GPSMAP 185
Garmin GPSMAP 188
Garmin GPSMAP 232
Garmin GPSMAP 238
Garmin Striker 5 Series
Garmin Striker Plus 5cv
Garmin Striker Vivid 5cv
