Part#:UPC:
RAM-HOL-SAM60CPU
793442018428
- Features:
- RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
- RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
Brand
Symbol
RAM-HOL-SAM60CPU
Producer code
793442018428
Series
Product Weight
268 g
313 g

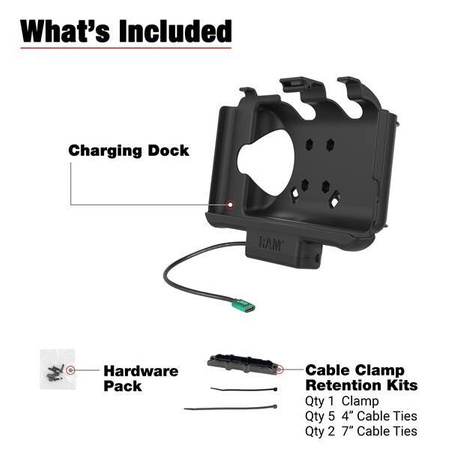

Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Cable Clamp|(2) Large Cable Ties|(5) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Component parts
RAM-GDS-CAB-CLAMP1U
Product Dimensions
Width: 9.24"|Height: 6.34"|Depth: 2.57"
Samsung Tab Active3
Samsung Tab Active2
Samsung Tab Active5
Ask a question
Write your opinion
- View details

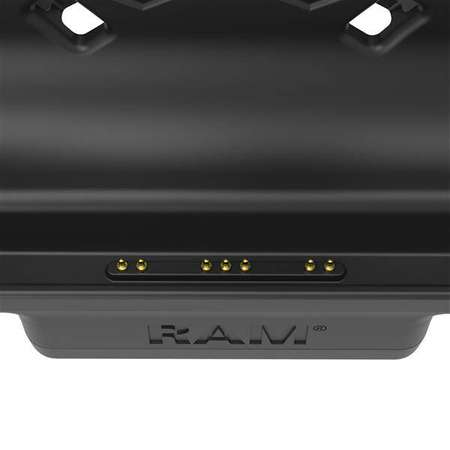

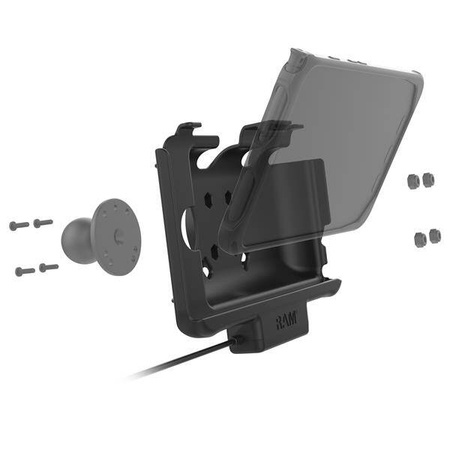

The RAM USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS pogo pins. This modular dock is compatible with the RAM Skin, factory device skin, and GDS Hand-Stand. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention. BrandSymbolRAM-HOL-SAM60CPUProducer code793442018428SeriesProduct Weight268 g313 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Cable Clamp|(2) Large Cable Ties|(5) Small Cable TiesHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage5.3-5.4VDCOutput Voltage5VDCPower Output500mAInput ConnectorUSB Type-C FemaleInput Cable Length215mmComponent partsRAM-GDS-CAB-CLAMP1UProduct DimensionsWidth: 9.24"|Height: 6.34"|Depth: 2.57" - CompatibilitySamsung Tab Active3Samsung Tab Active2Samsung Tab Active5
