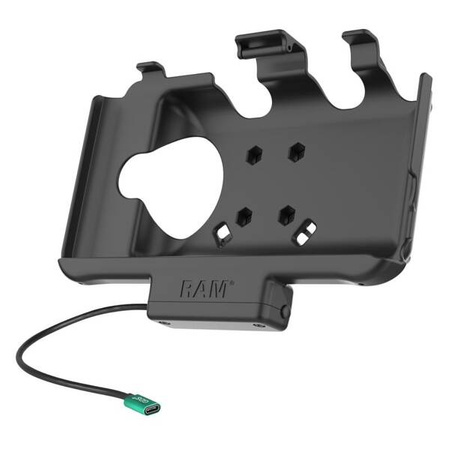

RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger
Part#:UPC:
RAM-HOL-SAM60CP-V7CU
793442019982
- Features:
- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Vehicle hardwire charger included
- Back by a 3-year warranty
Brand
Symbol
RAM-HOL-SAM60CP-V7CU
Producer code
793442019982
Series
Product Weight
494 g
513 g

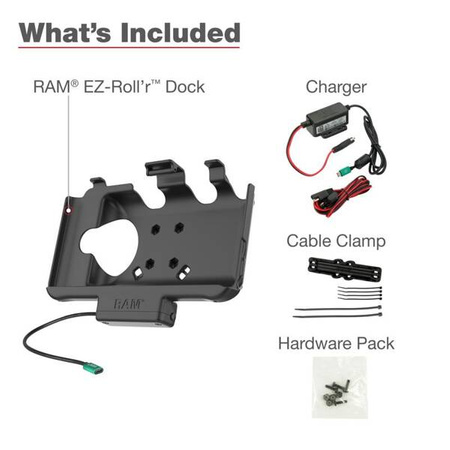

Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Optional Cable Clamp Housing|(1) Hardwire Charger
Product Dimensions
Width: 9.24"|Height: 6.34"|Depth: 2.57"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm
Component parts
RAM-GDS-CHARGE-V7CU
RAM-HOL-SAM60CPU
Samsung Tab Active5
Samsung Tab Active3
Samsung Tab Active2
Ask a question
Write your opinion
- View details
The RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU) meets the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. The dock delivers power via the USB Type-C female pigtail and Modular 10-30V Hardwire Charger. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern and USB-C cable clamp with zip ties for cable management and retention. BrandSymbolRAM-HOL-SAM60CP-V7CUProducer code793442019982SeriesProduct Weight494 g513 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) Optional Cable Clamp Housing|(1) Hardwire ChargerProduct DimensionsWidth: 9.24"|Height: 6.34"|Depth: 2.57"Hole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage5.3-5.4VDCOutput Voltage5VDCPower Output500mAInput ConnectorUSB Type-C FemaleInput Cable Length215mmComponent partsRAM-GDS-CHARGE-V7CURAM-HOL-SAM60CPU - CompatibilitySamsung Tab Active5Samsung Tab Active3Samsung Tab Active2
