RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets
RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets
RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets
RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets
RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets
RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets

RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$133.74
$156.92
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

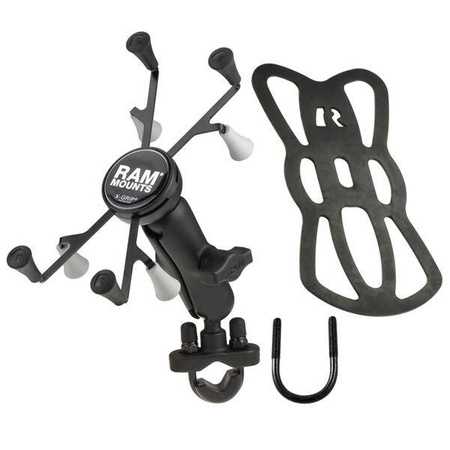

    The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
    Symbol
    RAM-B-149Z-UN8U
    Producer code
    793442940699
    Product Weight
    363 g
    Hardware Included
    (1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
    Holder Dimensions
    Width Range: 2.5" - 5.75"|Depth Range: .875" max
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite|Stainless steel
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Tablet
    Vehicle Type
    Off-road Vehicle
    Component parts
    RAM-B-201U
    RAM-B-231ZU
    RAM-HOL-UN8BU
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
