RAM® X-Grip® Large Phone Mount with ATV/UTV Rail Base
Part#:UPC:
RAM-B-231-2-UN10
793442950667
- Features:
- Phone mount for ATV/UTVs includes large size phone holder, rail and bar base with strap clamp and U-bolt components

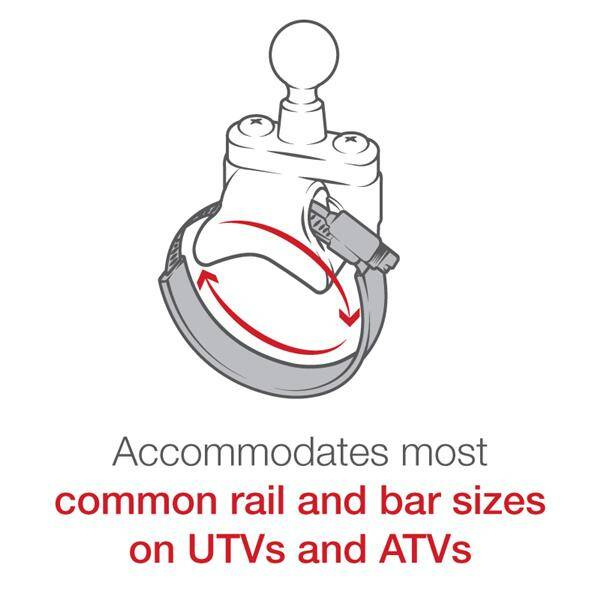

- RAM® strap mount will accommodate most common roll bar sizes on UTV and handlebar sizes on ATVs
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-B-231-2-UN10
Producer code
793442950667
Series
Product Weight
553 g
Hardware Included

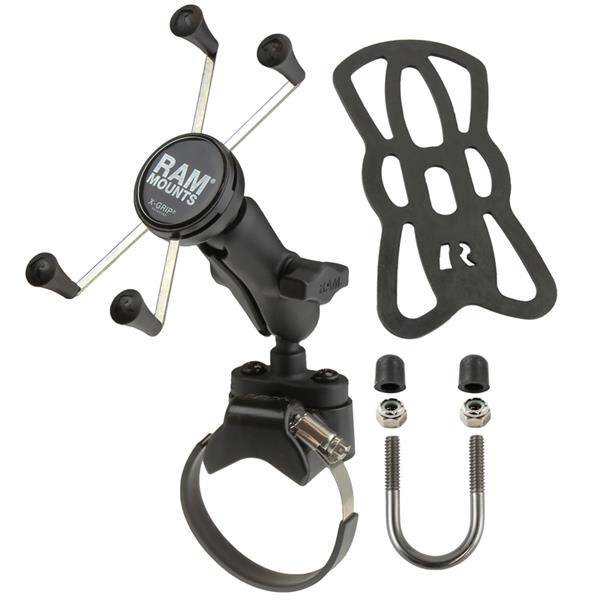

(1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(2) Rubber Caps|(1) U-Bolt Spacer
Holder Dimensions

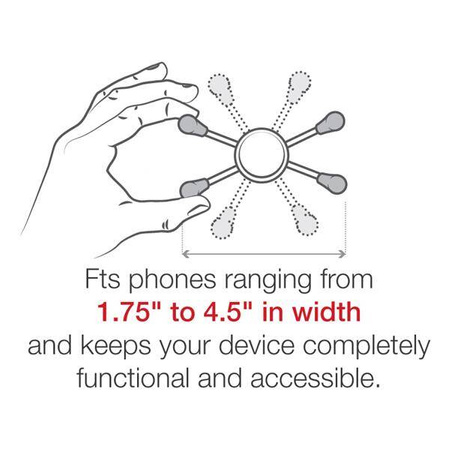

Width Range: 1.75" - 4.5"|Depth Range: .875" max
Clamp Range
U-Bolt: .5" - 1" diameter|Strap Clamp: 1.57" - 3.15" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite|Stainless steel
Packaging Type
Retail Box
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1"|1.57" - 3.15"
Device or Accessory Type
Phone
Vehicle Type
ATV
UTV
Component parts
RAM-B-201U
RAM-B-231-2
RAM-HOL-UN10BU
Socket To Socket Length
3"
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

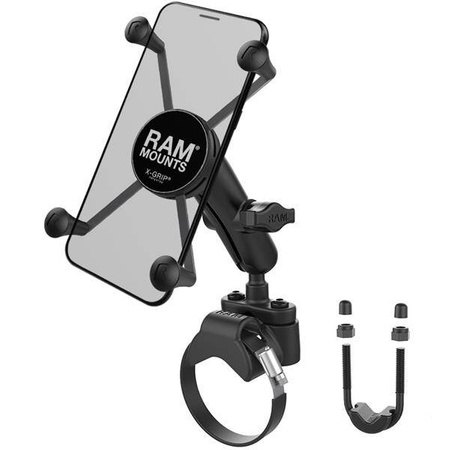

The RAM-B-231-2-UN10 consists of a steel strap base, stainless steel u-bolt base, double socket arm and universal spring loaded X-Grip cradle for large phones and phablets. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. BrandSymbolRAM-B-231-2-UN10Producer code793442950667SeriesProduct Weight553 gHardware Included(1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(2) Rubber Caps|(1) U-Bolt SpacerHolder DimensionsWidth Range: 1.75" - 4.5"|Depth Range: .875" maxClamp RangeU-Bolt: .5" - 1" diameter|Strap Clamp: 1.57" - 3.15" diameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength composite|Stainless steelPackaging TypeRetail BoxMounting TypeHandlebar/RailBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDiameter Range.5" - 1"|1.57" - 3.15"Device or Accessory TypePhoneVehicle TypeATVUTVComponent partsRAM-B-201URAM-B-231-2RAM-HOL-UN10BUSocket To Socket Length3"Ball SizeB Size (1") - Recommended products
