Part#:UPC:
RAM-B-174-UN10
793442950650
Brand
Symbol
RAM-B-174-UN10
Producer code
793442950650
Series
Product Weight
544 g
Hardware Included
(1) Optional Tether|(1) Glue Tube for Rubber Caps|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2

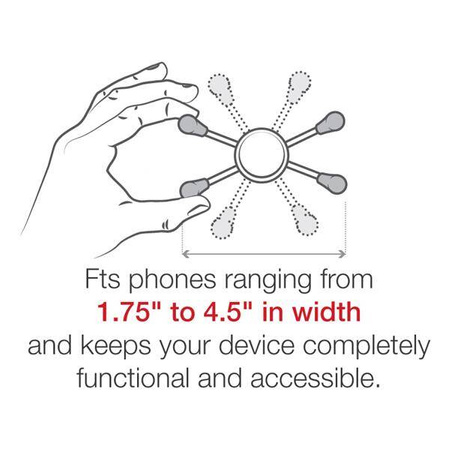

Holder Dimensions
Width Range: 1.75" - 4.5"|Depth Range: .875" max
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite|Stainless steel
Packaging Type
Retail Box
Mounting Type
Brake/Clutch Reservoir
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
Phone
Vehicle Type
Motorcycle
Component parts
RAM-B-201U
RAM-B-309-7U
RAM-HOL-UN10BU
Socket To Socket Length
3"
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

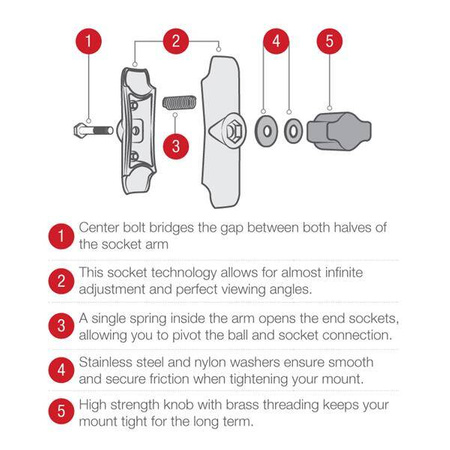

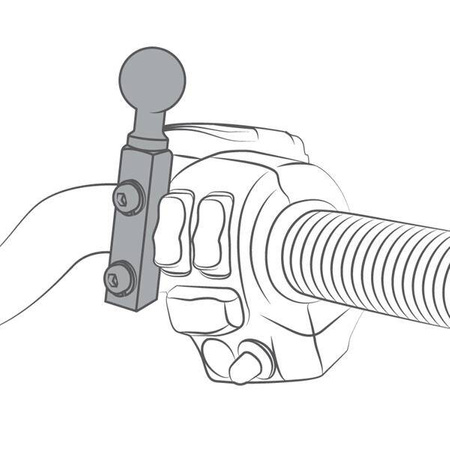

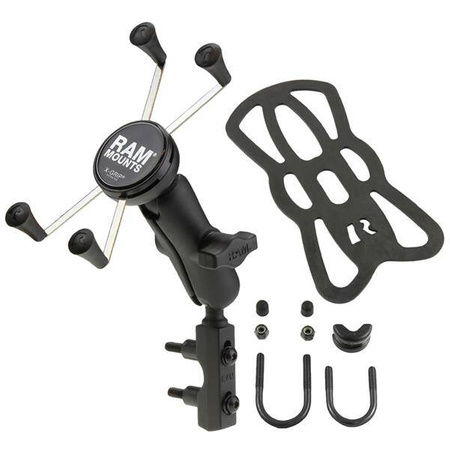

The RAM-B-174-UN10 consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and universal X-Grip large phone/phablet holder. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. BrandSymbolRAM-B-174-UN10Producer code793442950650SeriesProduct Weight544 gHardware Included(1) Optional Tether|(1) Glue Tube for Rubber Caps|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2Holder DimensionsWidth Range: 1.75" - 4.5"|Depth Range: .875" maxClamp Range.5" - 1.25" diameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength composite|Stainless steelPackaging TypeRetail BoxMounting TypeBrake/Clutch ReservoirHandlebar/RailBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDiameter Range.5" - 1.25"Device or Accessory TypePhoneVehicle TypeMotorcycleComponent partsRAM-B-201URAM-B-309-7URAM-HOL-UN10BUSocket To Socket Length3"Ball SizeB Size (1") - Recommended products
