Part#:UPC:
RAM-B-176-A-UN10U
793442952999
- Features:
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

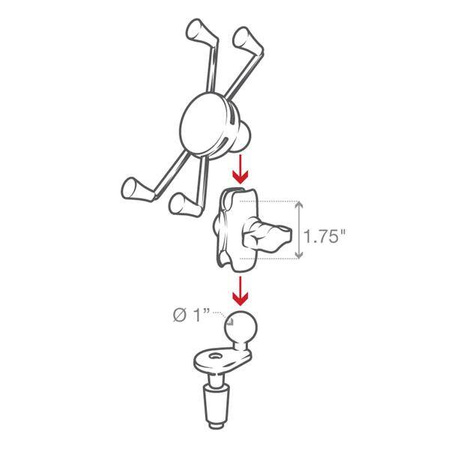

- Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-B-176-A-UN10U
Producer code
793442952999
Series
Product Weight
313 g
318 g
Hardware Included
(1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes|(1) M5 x 60mm Machine Screw|(1) Steel Washer Set|(1) Nut Pocket Washer Set|(1) Brass Nylock Nut
Holder Dimensions
Width Range: 1.75" - 4.5"|Depth Range: .875" max
Socket-to-Socket Length
1.75"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite|Stainless steel
Packaging Type
Poly Bag
Mounting Type
Fork Stem
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Short Arm
Device or Accessory Type
Phone
Vehicle Type
Motorcycle
Component parts
RAM-B-201U-A
RAM-B-342U
RAM-HOL-UN10BU
Socket To Socket Length
1.75"
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

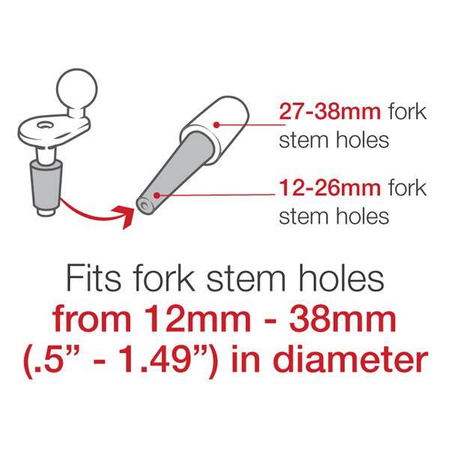

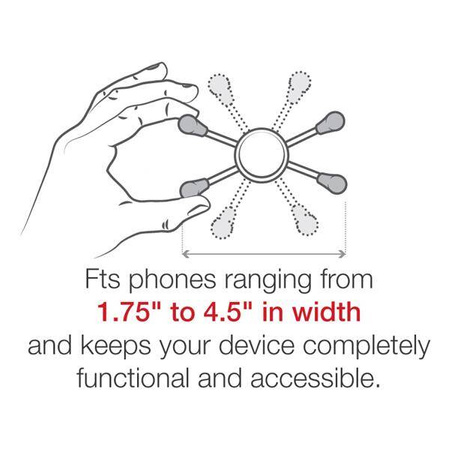

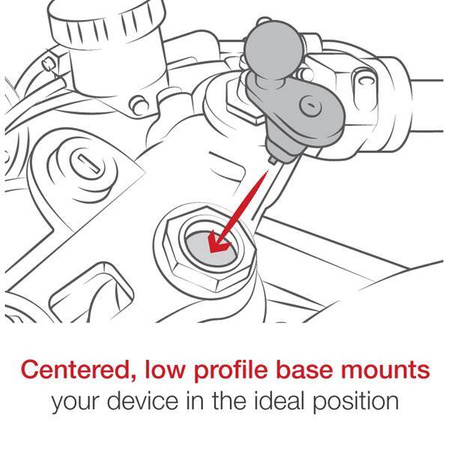

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5" to 1.49") in diameter, the RAM-B-176-A-UN10U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM X-Grip large phone holder. The RAM X-Grip features an 'X' design that expands and contracts to provide a perfect fit for your device even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM X-Grip fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM X-Grip includes a device tether that is recommended for added security and peace of mind. BrandSymbolRAM-B-176-A-UN10UProducer code793442952999SeriesProduct Weight313 g318 gHardware Included(1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes|(1) M5 x 60mm Machine Screw|(1) Steel Washer Set|(1) Nut Pocket Washer Set|(1) Brass Nylock NutHolder DimensionsWidth Range: 1.75" - 4.5"|Depth Range: .875" maxSocket-to-Socket Length1.75"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength composite|Stainless steelPackaging TypePoly BagMounting TypeFork StemBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthShort ArmDevice or Accessory TypePhoneVehicle TypeMotorcycleComponent partsRAM-B-201U-ARAM-B-342URAM-HOL-UN10BUSocket To Socket Length1.75"Ball SizeB Size (1") - Recommended products
