Part#:UPC:
RAM-B-410-A-UN10BU
793442952722
- Features:

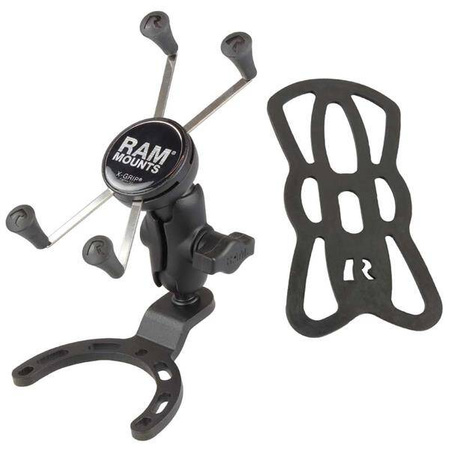

- Motorcycle gas tank mount featuring spring-loaded 'X' design for large phones with rubber caps sporting great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes RAM® Small Gas Tank Base ideal for motorcycles and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-B-410-A-UN10BU
Producer code
793442952722
Series
Product Weight
268 g
Hardware Included
Assembly Hardware|(1) Optional Tether|(1) Glue Tube for Rubber Caps|(3) M6-1.0 x 25mm Socket Head Cap Screw|(3) M5-.8 x 35mm Socket Head Cap Screw|(4) M5-.8 x 45mm Socket Head Cap Screw|(3) M5-.8 x 25mm Socket Head Cap Screw|(3) M5-.8 x 20mm Socket Head C
Holder Dimensions

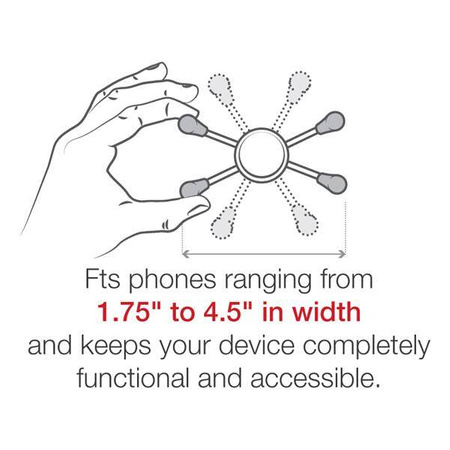

Width Range: 1.75" - 4.5"|Depth Range: .875" max
Socket-to-Socket Length
1.75"

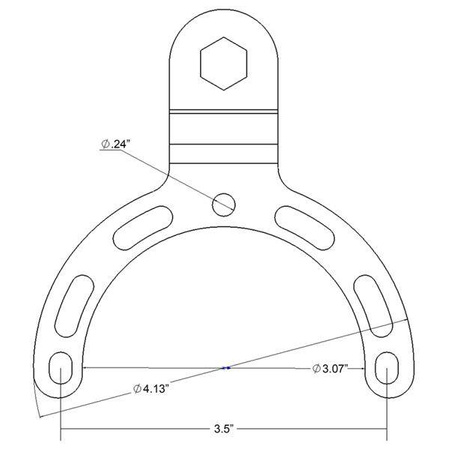

Hole Pattern
See Drawing
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite|Stainless steel
Packaging Type
Poly Bag
Mounting Type
Gas Tank
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Short Arm
Device or Accessory Type
Phone
Vehicle Type
Motorcycle
Component parts
RAM-B-201U-A
RAM-B-410U
RAM-HOL-UN10BU
Socket To Socket Length
1.75"
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

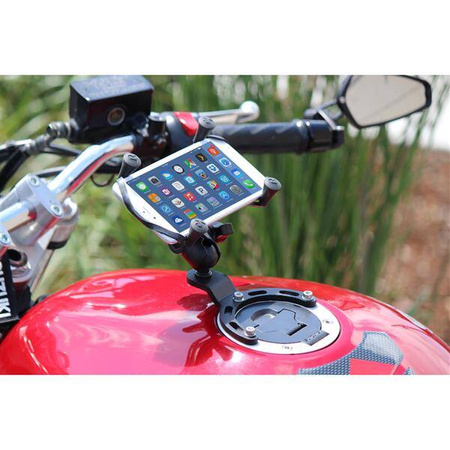

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. Included is the X-Grip for large phone devices. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. BrandSymbolRAM-B-410-A-UN10BUProducer code793442952722SeriesProduct Weight268 gHardware IncludedAssembly Hardware|(1) Optional Tether|(1) Glue Tube for Rubber Caps|(3) M6-1.0 x 25mm Socket Head Cap Screw|(3) M5-.8 x 35mm Socket Head Cap Screw|(4) M5-.8 x 45mm Socket Head Cap Screw|(3) M5-.8 x 25mm Socket Head Cap Screw|(3) M5-.8 x 20mm Socket Head CHolder DimensionsWidth Range: 1.75" - 4.5"|Depth Range: .875" maxSocket-to-Socket Length1.75"Hole PatternSee DrawingWeight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength composite|Stainless steelPackaging TypePoly BagMounting TypeGas TankBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthShort ArmDevice or Accessory TypePhoneVehicle TypeMotorcycleComponent partsRAM-B-201U-ARAM-B-410URAM-HOL-UN10BUSocket To Socket Length1.75"Ball SizeB Size (1") - Recommended products
