RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets

RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$154.51
$182.46
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

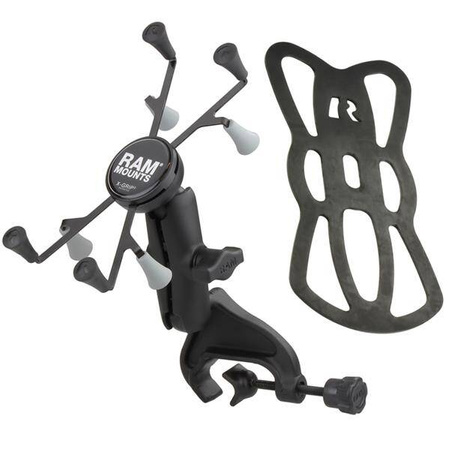

    The RAM-B-121-UN8U consists of a yoke clamp base, double socket arm system and universal spring loaded X-Grip cradle for 7"-8" tablets. The yoke clamp base will fit rails from 0.625" to a maximum of 1.25". The 1" rubber ball is positioned at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
    Symbol
    RAM-B-121-UN8U
    Producer code
    793442939938
    Product Weight
    413 g
    426 g
    Hardware Included
    (1) Optional Tether|(1) Glue Tube for Rubber Caps
    Holder Dimensions
    Width Range: 2.5" - 5.75"|Depth Range: .875" max
    Clamp Range
    .625" - 1.25"
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .625" - 1.25"
    Device or Accessory Type
    Tablet
    Vehicle Type
    Aircraft
    Off-road Vehicle
    Component parts
    RAM-B-121BU
    RAM-B-201U
    RAM-HOL-UN8BU
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
