RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
RAM® X-Grip® Phone Mount with ATV/UTV Rail Base

RAM® X-Grip® Phone Mount with ATV/UTV Rail Base

  • Features:
  • Phone mount for ATV/UTVs includes standard size phone holder, rail and bar base with strap clamp and U-bolt components

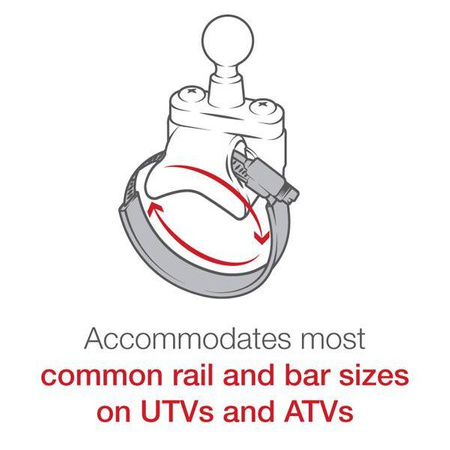

  • RAM® strap mount will accommodate most common roll bar sizes on UTV and handlebar sizes on ATVs
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$125.43
$146.05
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

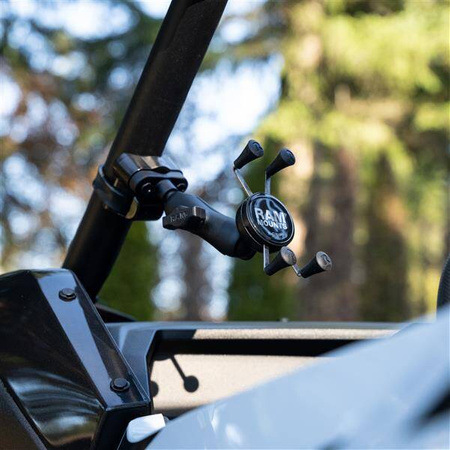

    The RAM-B-231-2-UN7U consists of a steel strap base, stainless steel u-bolt base, double socket arm and universal spring loaded X-Grip cradle for cell phones. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
    Symbol
    RAM-B-231-2-UN7U
    Producer code
    793442951992
    Product Weight
    408 g
    Hardware Included

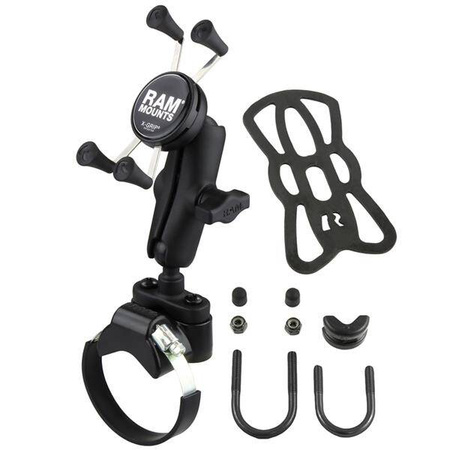

    (1) Optional Tether|(1) Glue Tube for Rubber Caps|(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(2) Rubber Caps|(1) U-Bolt Spacer
    Holder Dimensions
    Width Range: 1.875" - 3.25"|Depth Range: .875" max
    Clamp Range
    U-Bolt: .5" - 1" diameter|Strap Clamp: 1.57" - 3.15" diameter
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite|Stainless steel
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .5" - 1"|1.57" - 3.15"
    Device or Accessory Type
    Phone
    Vehicle Type
    ATV
    UTV
    Component parts
    RAM-B-201U
    RAM-B-231-2
    RAM-HOL-UN7BU
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
