RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium
RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium

RAM® X-Grip® Phone Mount with Brake/Clutch Reservoir Base - Medium

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$122.11
$15.52
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

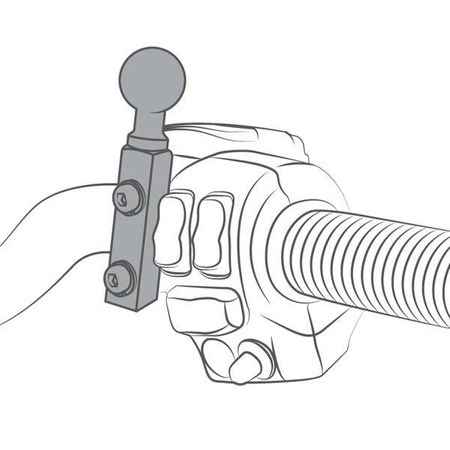

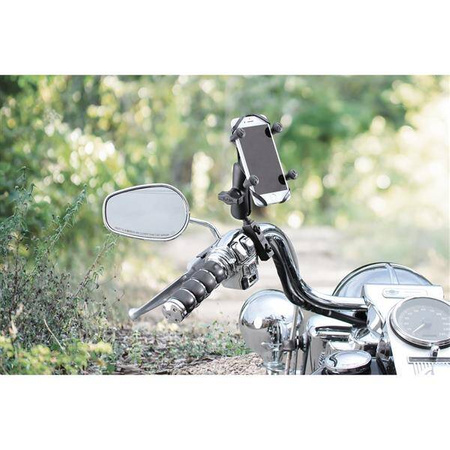

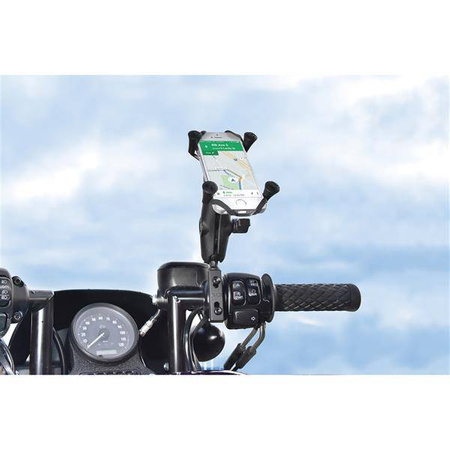

    The RAM-B-174-UN7U consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and universal X-Grip cell phone cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
    Symbol
    RAM-B-174-UN7U
    Producer code
    793442940729
    Product Weight
    431 g
    Hardware Included

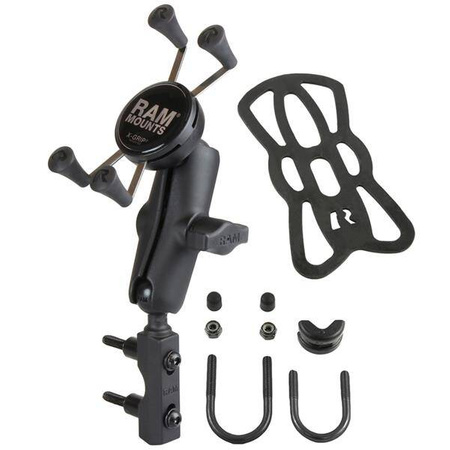

    (1) Optional Tether|(1) Glue Tube for Rubber Caps|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2
    Holder Dimensions
    Width Range: 1.875" - 3.25"|Depth Range: .875" max
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite|Stainless steel
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Brake/Clutch Reservoir
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Phone
    Vehicle Type
    Motorcycle
    Component parts
    RAM-B-201U
    RAM-B-309-7U
    RAM-HOL-UN7BU
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
