RAM® X-Grip® Phone Mount with Glare Shield Clamp Base
RAM® X-Grip® Phone Mount with Glare Shield Clamp Base
RAM® X-Grip® Phone Mount with Glare Shield Clamp Base
RAM® X-Grip® Phone Mount with Glare Shield Clamp Base

RAM® X-Grip® Phone Mount with Glare Shield Clamp Base

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$128.76
$150.77
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

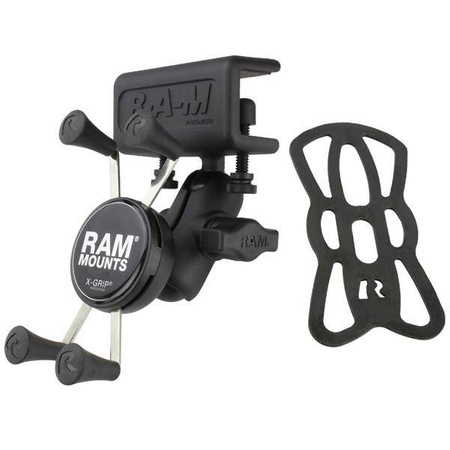

    The RAM-B-177-UN7U consists of a glare shield clamp base, short double socket arm and universal spring loaded X-Grip cradle for cell phones. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
    Symbol
    RAM-B-177-UN7U
    Producer code
    793442940750
    Product Weight
    336 g
    Hardware Included
    (1) Optional Tether|(1) Glue Tube for Rubber Caps|(2) 1/4"-20 x 1.25" Composite Thumb Screws|(2) Rubber Caps|(1) 1.93" x 3.06" Rubber Adhesive Pad
    Holder Dimensions
    Width Range: 1.875" - 3.25"|Depth Range: .875" max
    Clamp Range
    .625" max
    Socket-to-Socket Length
    1.75"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite|Stainless steel
    Packaging Type
    Poly Bag
    Mounting Type
    Flat Edge Clamp
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Short Arm
    Device or Accessory Type
    Phone
    Vehicle Type
    Aircraft
    Component parts
    RAM-B-201U-A
    RAM-B-259U
    RAM-HOL-UN7BU
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
