RAM® X-Grip® Phone Mount with Large Gas Tank Base
RAM® X-Grip® Phone Mount with Large Gas Tank Base
RAM® X-Grip® Phone Mount with Large Gas Tank Base
RAM® X-Grip® Phone Mount with Large Gas Tank Base
RAM® X-Grip® Phone Mount with Large Gas Tank Base
RAM® X-Grip® Phone Mount with Large Gas Tank Base

RAM® X-Grip® Phone Mount with Large Gas Tank Base

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$145.37
$169.69
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

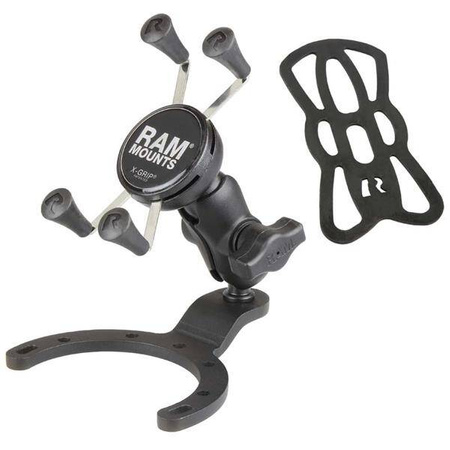

    The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
    Symbol
    RAM-B-411-A-UN7BU
    Producer code
    793442952777
    Product Weight
    308 g
    Hardware Included
    Assembly Hardware|(1) Optional Tether|(1) Glue Tube for Rubber Caps|(4) M5-.8 x 40mm Socket Head Cap Screws|(3) M5-.8 x 25mm Socket Head Cap Screws|(4) M5 Stainless Steel Washers
    Holder Dimensions
    Width Range: 1.875" - 3.25"|Depth Range: .875" max
    Socket-to-Socket Length
    1.75"

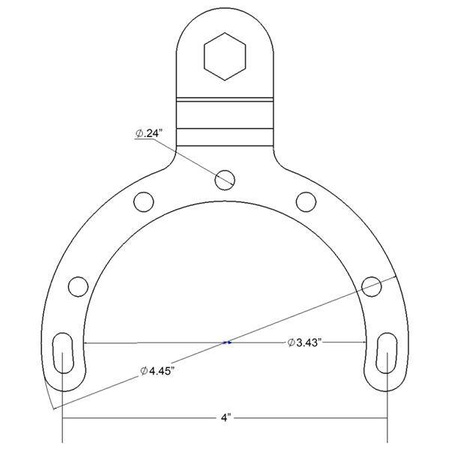

    Hole Pattern
    See Drawing
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite|Stainless steel
    Packaging Type
    Poly Bag
    Mounting Type
    Gas Tank
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Short Arm
    Device or Accessory Type
    Phone
    Vehicle Type
    Motorcycle
    Component parts
    RAM-B-201U-A
    RAM-B-411U
    RAM-HOL-UN7BU
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
